Volkswagen Touran Service Manual: ACC - Adaptive Cruise Control

  Note
On vehicles with ACC, the trim in the right cover section of the front bumper must not be painted if paint repairs or component replacements are performed. The ACC system is located behind this section therefore a coat of paint would destroy its functionality.
The cover for the distance regulation sensor in the bumper grille is composed of radar-penetrable material. The cover is heated to avoid functions being restricted from snow or ice.
All changes to the surface such as additional painting, bonding and other supplementary applied objects can cause malfunctions.

Distance Regulation Control Module -J428-

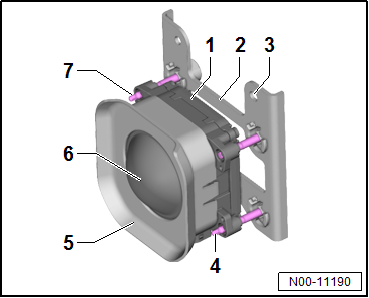

The image shows the Distance Regulation Control Module - J428- on the Golf. The image can vary on other vehicle models.
1 -  Adapter Plate
2 -  Bracket
3 -  Fastening Hole
4 -  Vertical Adjustment Bolt
5 -  Trim
6 -  Distance Regulation Sensor/ Distance Regulation Control Module
7 -  Horizontal Adjustment Bolt
  ACC - Adaptive Cruise Control
