Volkswagen Touran Service Manual: Battery Charger -VAS5095A- Device Description

  WARNING
Risk of injury. Follow all Warnings and Safety Precautions. Refer to → Chapter "Warnings and Safety Precautions".
  Caution
In order to prevent damage to the battery or vehicle, observe battery type descriptions and notes. Refer to → Chapter "Types of Batteries".
  WARNING
Batteries that have a light yellow visual indicator do not have to be tested or charged. Jump starting must not be used!
There is a risk of explosion during testing, charging or jump starting.
These batteries must be replaced.
In this chapter, the base functions of the Battery Charger -VAS5095A- are described. Refer to Battery Charger -VAS5095A- Operating Instructions for additional information.
  Note
The effective charging current cannot be read out on this unit. The charging current must be measured externally with a current probe.
Pay attention to the Battery Charger -VAS5095A- Operating Instructions.
The Battery Charger -VAS5095A- is designed to charge all 12 V batteries in the VW group.
The battery is charged without amperage or voltage surges. Thereby the on-board electronics will not be affected. It is not necessary to remove the battery from the vehicle or be disconnected from the electrical system during charging.

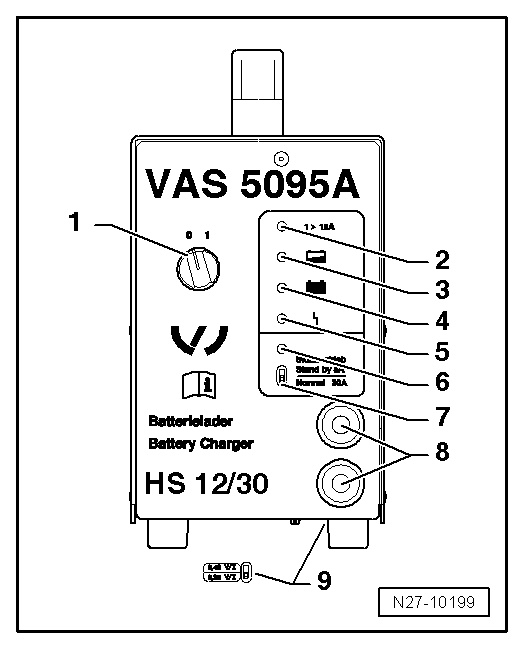

Battery Charger -VAS5095A-
1 -  Switch ON/OFF (0 = Charger OFF)
2 -  Charge current display (I > 12 A)
3 -  Charge current display: battery partially charged > 90%
4 -  Charger sustain, lights up green when battery is charged
5 -  Interference indicator
6 -  Support mode indicator
7 -  Support mode/normal mode selector switch
8 -  Charger cables, red charging clamp "+", black charging clamp "-".
9 -  Battery type selector switch (base of loading devices)
  Battery Charger -VAS5095A- Device Description
Battery, Charging
...

Battery, Charging with Battery Charger -VAS5095A-
Special tools and workshop equipment required Battery Charger -VAS5095A-   WARNING ...
