Volkswagen Touran Service Manual: Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and Installing

Volkswagen Touran Service Manual / Wheel  and Tire Guide Information / Rim Information / Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and Installing

Removing
The wheel is removed.
  Note

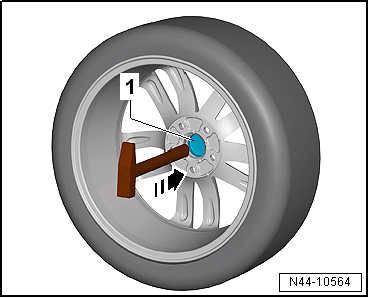

Hold the cap secure -1- with the hammer.
Installing
  Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and Installing

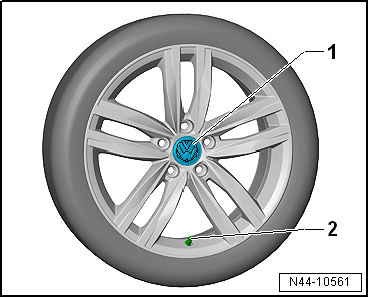

  Hold the cap -1- flush against the opening in the aluminum rim.
  Line up the Volkswagen logo on the cap with the valve so that the logo is centered over the valve -2-.
  Press on the cap so that it is secure inside the opening in the aluminum rim.
  Make sure the cap it secure inside the aluminum rim.
  Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and Installing
Light Alloy Wheels, Preparing
  WARNING Do not repair damaged rims by heating, welding or adding or removing material. ...

Decorative Trims, Replacing
...
