Volkswagen Touran Service Manual: Oxygen Sensor Unit Protective Pipes

  Note
In addition to using the part number, the protective pipe can also be used for identification.

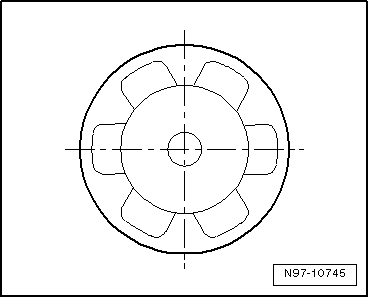

Version D1, 6 openings, 3.5 mm each

Only used with the 4-pin oxygen sensor

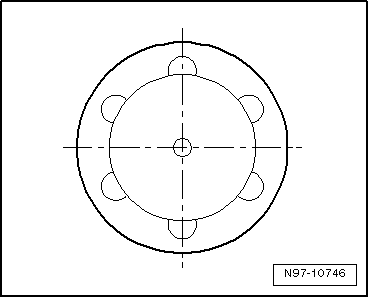

Version D2, 6 openings, 2 mm each
  Oxygen Sensor Unit Protective Pipes
Used with 4-pin and 6-pin universal oxygen sensors.

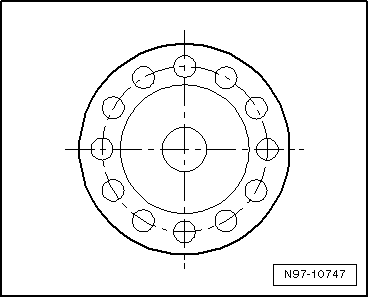

Version D4, 12 openings, 1.4 mm each
  Oxygen Sensor Unit Protective Pipes
Used with 4-pin and 6-pin universal oxygen sensors.
  Oxygen Sensor Unit Protective Pipes

Special Tools

Special tools and workshop equipment required

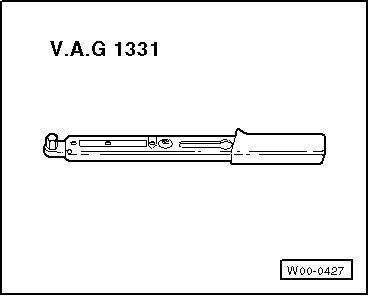

Torque Wrench 1331 5-50Nm -VAG1331-

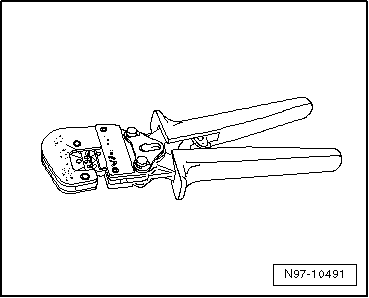

Crimping Pliers, Complete -VAS1978/1A-
  Special Tools
Exchangeable Head, 0.35mm² - 2.5mm² -VAS1978/1-1-
Diagnostic Cable -VAS5051/5A- (3 m) (10 ft.)
  Special Tools

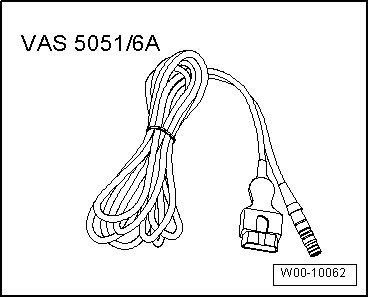

Diagnostic Cable -VAS5051/6A- (5 m) (16 ft.)
  Special Tools

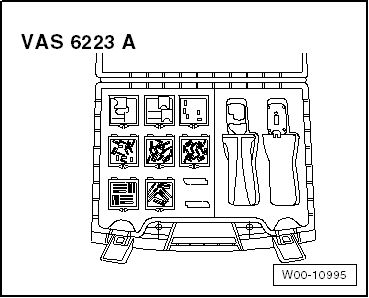

Fiber Optic Pliers Repair Set -VAS6223A-
  Special Tools

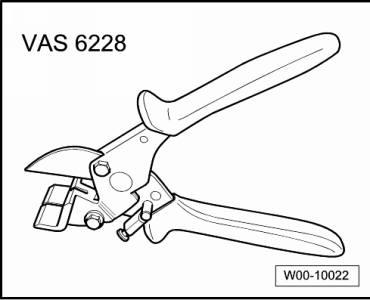

Air Hose Pliers -VAS6228-
Repair Set, Aerial Cable -VAS6720-
