Definition:

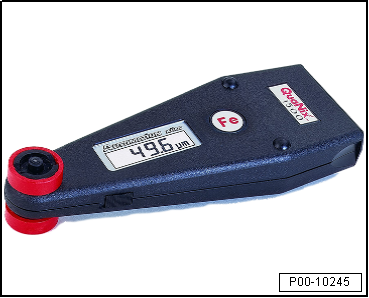

Paint Thickness Tester -VAS6197-

Product Description

Fully-electronic layer thickness measuring instrument with 2 independently operating sensors and LCD screens. Measurements on different metallic base materials are possible. All non-magnetic layers on steel or iron on the one part, all isolating layers on non-ferrous metals (for example, aluminum or copper) on the other part. Due to the Hall sensor technology used, calibration is not required.

Technical Data

Measuring range: 0-5000 mm for both sensors

Delivery Contents

Paint Layer Thickness Measuring Instrument

Case

Alignment plates

Battery
