Volkswagen Touran Service Manual: Run-Flat Tire, Overview of a PAX Tire

PAX tires involve specially developed system that exhibits the following differences in comparison to conventional tires:

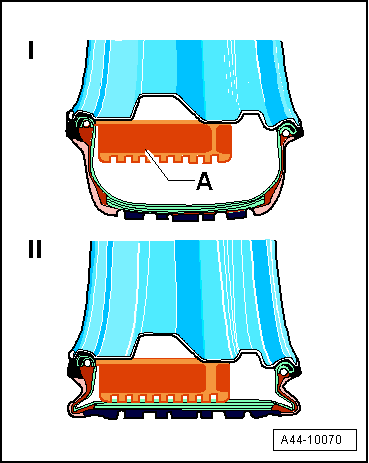

Pax Tires with Supporting Ring
  -I- PAX tires with air

  -II- PAX tires without air
  The tire is anchored to a special rim that prevents it from sliding off when pressure is lost. The rubber supporting ring ensures stability in emergency operation.
The inner and outer bead diameter are different sizes. This makes it possible to place the tire in a supporting ring.
The tire is anchored to the rim differently.
In this way, the tire height could be reduced considerably. That was possible because the area near the bead could be considerably smaller due to the special connection between the tire and rim.
The tire bead is formed so that it can engage in the rim seat. Therefore, it remains firmly in the seat when pressure is lost.
  Run-Flat Tire, Overview of a PAX Tire

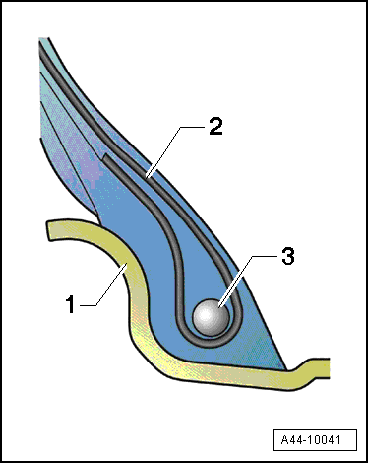

Standard Tire, Beat Area Construction
1 -  Rim flange
2 -  Fabric carcass
3 -  Bead bundle
  Run-Flat Tire, Overview of a PAX Tire

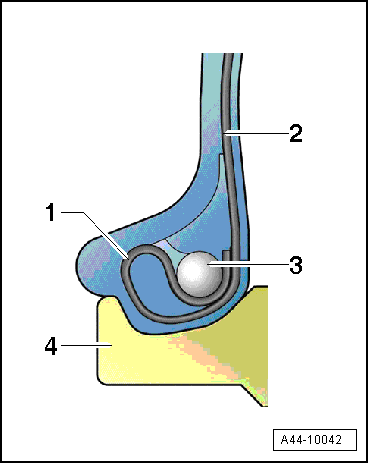

PAX Tire, Bead Area Construction
1 -  Loop
2 -  Fabric carcass
3 -  Bead bundle
4 -  Rim flange
  Run-Flat Tire, Overview of a PAX Tire

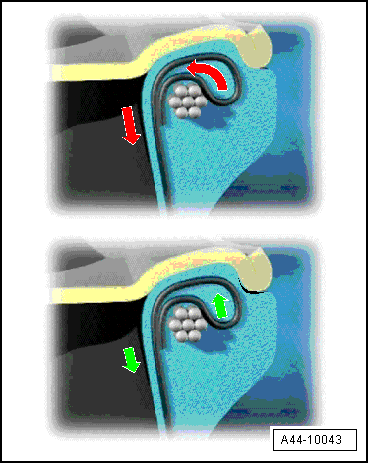

PAX Tires, Anchoring
The secure seating of the tire in the rim is ensured in all driving situations due to the type of construction.
A wedge-shaped component of the tire is pressed between the bead bundle and rim when loaded. This happens independently of the pressure in the tire.
  Run-Flat Tire, Overview of a PAX Tire

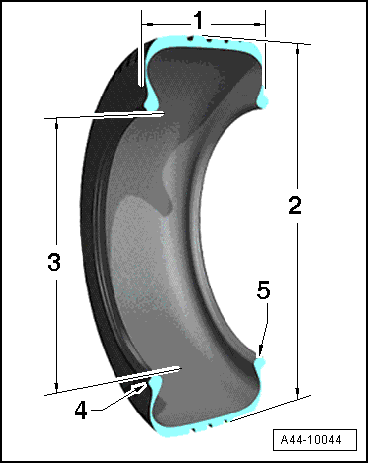

PAX Tires, Dimensions
In contract to conventional tires, tires with emergency running characteristics (PAX) exhibit differences in regard to dimensions and designations.
Therefore, PAX tires can only be mounted on special rims (PAX).
1 -  Width in mm: the tire width from flank to flank on standard rim (corresponds to width specification on standard tire).
2 -  Outer circumference in mm: maximum diameter of a new tire-
3 -  Designated diameter in millimeters on standard rim seat
4 -  Smaller bead diameter in millimeters: rim seat on outer side
5 -  Larger bead diameter in millimeters: rim seat on inner side
  Run-Flat Tire, Overview of a PAX Tire
Run-Flat Tire, Seal Inside-Technology
The vehicle can be equipped with run-flat tires as an option. The Seal Inside technology is a system that allows the vehicle to continue ...

Tires with Emergency Running Characteristics, SST (Self-Supporting Tire)
...
