Volkswagen Touran Service Manual: Run-Flat Tire PAX, Examining

Pay special attention to the following criteria when examining the tire:

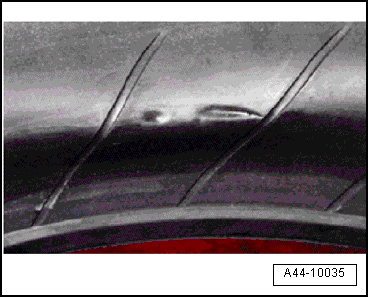

Surface erosion or marbling on the inner side (pressure was too low or insufficient for the load)

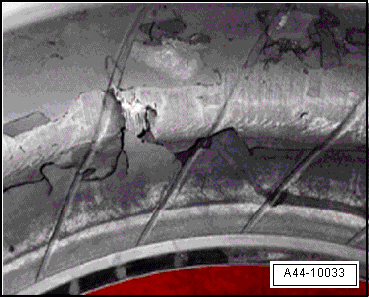

Detached rubber or loose cords
  Run-Flat Tire PAX, Examining

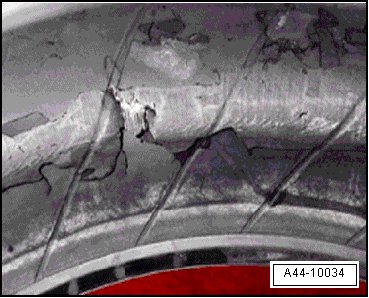

Exposed or deformed bead bundle
  Run-Flat Tire PAX, Examining
Damage to tire bead with visible cords
  Run-Flat Tire PAX, Examining
    Run-Flat Tire PAX, Repairing
    General Information It is generally not necessary to replace a tire after going flat and after driving on a flat tire.   Note ...

    Tires, Storing
    Storage Room Tire storage must be: Dark, Dry, Cool and ...
