Volkswagen Touran Service Manual: Spray Can Filling Device -VAS6425-

Definition:
Spray Can Filling Device -VAS6425-
Product Description
The spray can filling device is a pneumatic, maintenance-free dispensing device for filling spray cans with mixed base paint and top coats. The device is suited for filling One-Part Fill-Clean Spray Cans -LLS MAX 100-, which can be ordered via the Parts Catalog.
Size
Diameter: 132 mm
Height: 366 mm
Door height: 123 mm
Filling cylinder: diameter 135 mm, height 65 mm, maximum filling volume 100 ml
Attachment plate dimensions: 250 x 250 x 2 mm
Technical Data
Pneumatic filling principle
Filling pressure: 8-10 bar/100-130 psi
Rupture point: approximately 60 bar/ca. 870 psi
Operating temperature: +5 C to +50 C (41 to 122 F)
Gross weight: 4.23 kg
Net weight: 4.00 kg

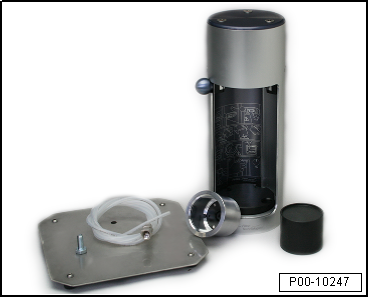

Delivery Contents:
Spray can filling device and metal cylinder
Compressed air hose and attachment coupling
Fastening screw and washer
Base plate
Adapter for 250 mL cans
  Spray Can Filling Device -VAS6425-
