Volkswagen Touran Service Manual: Technical Requirements

Factory-Installed Trailer Hitch. Refer to → Chapter "Factory-Installed Trailer Hitch".
Retrofitted Trailer Hitch. Refer to → Chapter "Retrofitted Trailer Hitch".
Ball head. Refer to → Chapter "Ball Head".
Trailer socket. Refer to → Chapter "Trailer Socket".
Towing Recognition Control Module -J345-. Refer to → Chapter "Towing Recognition Control Module -J345-".
Engine Cooling. Refer to → Chapter "Engine Cooling".
Exterior Mirrors. Refer to → Chapter "Exterior Rearview Mirror".
Reinforced Shock Absorbers and Coil Springs. Refer to → Chapter "Reinforced Shock Absorbers and Coil Springs".


Factory-Installed Trailer Hitch

If the vehicle was already delivered from the factory with a trailer hitch, all of the technical and legal requirements for towing a trailer have already been taken into account.
Note that a "13-pin" trailer socket has been installed in many models since the beginning of 1988 instead of the conventional "7-pin" socket. This new socket allows additional electrical consumers in the trailer to be connected, such as back-up lamps. This was not possible with the previous 7-pin socket.
If the trailer that will be hitched has a "7-pin" connector, an adapter cable available from authorized Volkswagen dealers can be used.


Retrofitted Trailer Hitch

Note the following if the vehicle will be retrofitted with a trailer hitch:
The trailer hitch is a safety-related component. Only use approved hitches that were designed to meet the vehicle requirements. Trailer hitches from the Volkswagen Accessories program are recommended because they are identical to the hitches installed at the factory. The installation instructions provided with these trailer hitches have also been approved by Volkswagen.


Ball Head

Height:
350 to 420 mm, measured from the center of the ball to the road surface, with the total weight within the permitted range
Distance:
At least 65 mm, measured from the center of the ball to the bumper


Trailer Socket

Connect the trailer socket to the vehicle electrical system of the vehicle pulling the trailer according to the manufacturer instructions.
Refer to the applicable wiring diagrams or manufacturer installation instructions when installing the trailer hitch.


7-Pin" Trailer Socket

If more electrical consumers need to be connected than the "7-pin" socket allows, a second "7-pin" socket must be installed. Pin assignment must conform to DIN ISO 1724:
1 - Left turn signal
2 - Tail lamps
3 - Ground
4 - Right turn signal
5 - Right headlamps, side marker lamps and license plate lamp
6 - Brake lamp
7 - Left headlamps, side marker lamps and license plate lamp

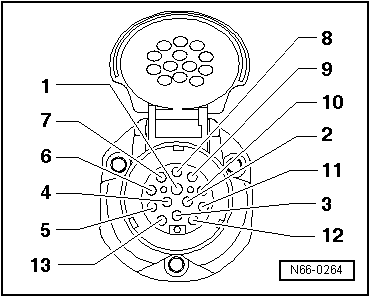

13-Pin" Trailer Socket

The backup lamps, "continuous current" and charging cable can be used on the trailer with the "13-pin" trailer socket. A "13-pin" trailer socket is recommended if a bicycle rack will be installed or a camper will be towed.

Pin assignment must conform to DIN ISO 11446:
1 - Left turn signal
2 - Tail lamps
3 - Ground for circuit 1 through 8
4 - Right turn signal
5 - Right headlamp
6 - Brake lamp
7 - Left headlamp
8 - Back-up lamps
9 - Terminal 30 (permanent positive)
10 - Terminal 15 (battery charging in trailer)
11 - free
12 - free
13 - Terminal 15/30 ground
  13-Pin

Towing Recognition Control Module -J345-

General Information
The Towing Recognition Control Module -J345- recognizes "trailer mode" when there is a power decrease of at least 5 W → Note and transmits this information to various control modules via the CAN data bus.
The Vehicle Electrical System Control Module -J519- and the Comfort System Central Control Module -J393- supply the Towing Recognition Control Module -J519- with information via the CAN data bus.
1)  At least turn signals or side marker lamps must be switched on to detect "trailer mode".
For information on testing control modules, diagnosing malfunctions, malfunction indicators and fault finding. Refer to → Electrical Equipment; Rep. Gr.97.


Towing Recognition Control Module -J345-, Retrofitting

Retrofitting a Towing Recognition Control Module -J345- approved by Volkswagen is possible, but it can pose problems due to the connection with the vehicle CAN data bus. The control module must then be coded in "Guided Fault Finding" using the → Vehicle diagnostic tester.
  Note
Installation of control module solutions that are available from third parties and are not approved by Volkswagen is not recommended. Installing such equipment voids the warranty. Generally, these are connected to the tail lamps and not integrated into the vehicle electrical system. This can result in a misdiagnosis from the lamp monitoring function or to malfunctions. Also, dimmed bulbs such as combined brake and tail lamps cannot be activated.


Towing Recognition Control Module -J345-, Coding

Refer to → Electrical Equipment; Rep. Gr.97 finformation on coding.


Engine Cooling

Because towing places higher demands on the engine cooling system, the cooling system is enhanced in vehicles that have factory-installed trailer hitches, if necessary. This is done by installing a stronger or a second coolant fan and/or a larger radiator. Vehicles designed for hot climates and/or with an A/C system already have the enhanced engine cooling system. In the Passat, a stronger coolant fan (PR number 0Y2) may also be installed alone at the factory. This makes it easier to install a trailer hitch later.
The cooling system should also be enhanced when a trailer hitch is retrofitted, if the system was not already modified at the factory. Otherwise the cooling system could overheat under increased engine load, for example when driving in mountains, in high temperatures or with high towing weight. When converting the cooling system, use the engine cooling system components designed for towing listed in the ETKA electronic parts catalog. Refer to the procedures in the applicable repair manuals.
Enhancing the cooling system may only be avoided if the engine will only be under moderate load, for example:
the combined weight is considerably less than the permitted amount,
no high outside temperatures,
no long, steep grades,
no driving at high altitude.
The coolant temperature gauge must always be monitored closely. If the needle in the gauge moves high into the hot zone, reduce speed immediately. It may be necessary to take a break to allow the engine to cool. When doing this, let the engine run at idle for approximately 2 minutes to prevent heat buildup.
  Note
In vehicles with an A/C system, switching the system off will reduce the load on the engine cooling system. This also improves vehicle acceleration and makes passing other vehicles safer.
If the cooling system is not enhanced, the seller must inform the buyer when selling the vehicle.


Exterior Rearview Mirror

If the traffic behind the trailer cannot be seen in the standard exterior rearview mirrors, additional exterior mirrors must be installed. Both exterior mirrors must be installed on folding mounts and adjusted to provide a sufficient range of vision behind the vehicle.


Reinforced Shock Absorbers and Coil Springs

Reinforced shock absorbers and coil springs on the vehicle rear axle reduce pitching motions between the vehicle and the trailer. If not already installed in the factory, these shock absorbers and springs can often be retrofitted at authorized Volkswagen dealers. Shock absorber and spring allocation. Refer to the → Electronic Parts Catalog (ETKA).
Stabilization aids can also reduce pitching and rolling motions. These aids are available from authorized Volkswagen dealers in most European countries and can be installed there.


Operating and Driving Tips

  Note
Always read and follow the operating and driving tips in the vehicle owner's manual.
