Volkswagen Touran Service Manual: Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version

Volkswagen Touran Service Manual / Wheel  and Tire Guide Information / Tire Pressure Sensor / Tire Pressure Monitoring Sensor, Removing and Installing / Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version

Special tools and workshop equipment required
Torque Wrench -VAG1410-
Perform the Following:
Removing
  Remove the tire from the disc wheel. Refer to → Chapter "Tires, Mounting".

See Which Version is Installed Before Starting Any Work.
I - Service Version

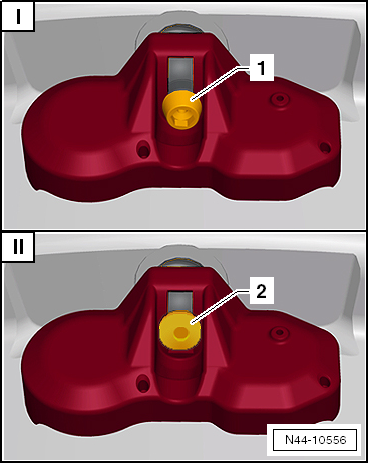

The tire pressure monitoring sensor is attached to the valve with an inner TORX screw -1- on the Service version.
If the service version is installed, the following repair procedure must be used. Refer to → Anchor.
II - Vehicles Before Customer Delivery
The tire pressure monitoring sensor is attached to the valve with a square screw with a flat head -2- on vehicles before customer delivery.
If the production version is installed, the following repair procedure must be used. Refer to → Anchor.
  Remove the screw -arrow- from the tire pressure monitoring sensor -1-.
  Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version
  Counterhold metal valve using retainer (for example 2 mm spiral bore) while doing so.
Installing
  Caution
Clean the valve opening before installing the Tire Pressure Monitoring Sensor.
  Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version

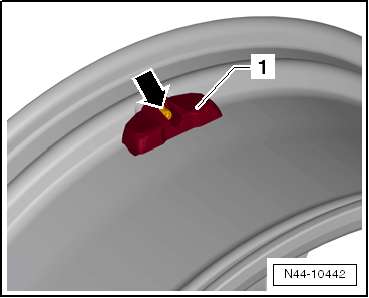

  Press the tire pressure monitoring sensor -1- onto the disc wheel (rim) and tighten -arrow-.
  Counterhold metal valve using retainer (for example 2 mm spiral bore) while doing so.
  Note
Visually check the valve after installing it and make sure it is tight. The tire pressure monitoring sensor -1- must not have any play when it is installed and it must touch the supports in the rim bed.
Do not tighten the valve again to the tightening specification after it has been installed.
Tightening Specifications
Refer to → Chapter "Overview - Tire Pressure Monitoring Sensor without Valve"
  Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version
