Volkswagen Touran Service Manual: Tire Sealant

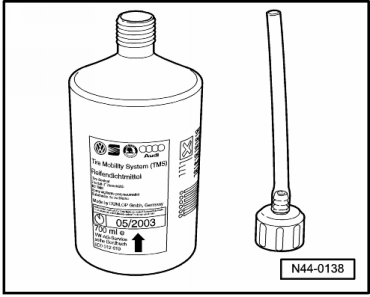

Tire Sealant, Expiration Date

Tire sealant in the bottle has a limited storage life.

Therefore, the expiration date is indicated on the bottle -arrow-.
Replace tire sealant when minimum shelf life date has been reached (tire sealant must not be older than 4 years).
If the bottle was opened, for example, for a punctured tire, it must also be replaced.
Observe the disposal regulations.
  Tire Sealant, Expiration Date
Tire Sealant, Disposal
  Tire sealant or residue from it must not be mixed with other wastes/fluids
Accumulating fluid residue from tire sealant must be collected and placed in a plastic container. The plastic containers can be sent for recycling together with the tire sets (if the expiration date has passed).
The return or recycling can take place using the existing workshop disposal systems
Check with the company responsible for trash pickup for the dealership.


Wheel Bolts

Wheel Bolt Versions

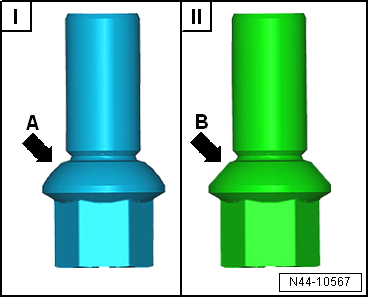

Shank Designs
There are two shank designs: rounded and conical.

The rounded shank has a curved surface -arrow A-. This design was used for original rims.
The conical shank has a flat surface -arrow B-. This design is used partially on rims from the accessories program.
I -  Wheel bolt with rounded shank
II -  Wheel bolt with conical shank
  Note
Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.
Only the same wheel bolts may be installed on all four wheel rims for every vehicle.
  Wheel Bolt Versions

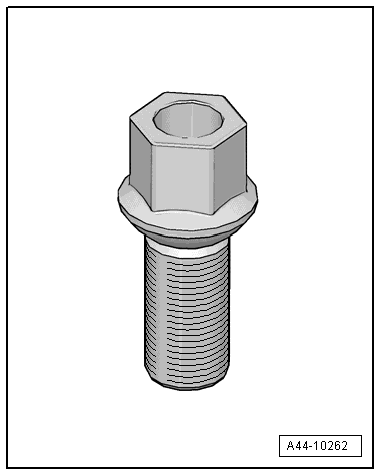

Standard, One-Piece Wheel Bolt.
  Wheel Bolt Versions

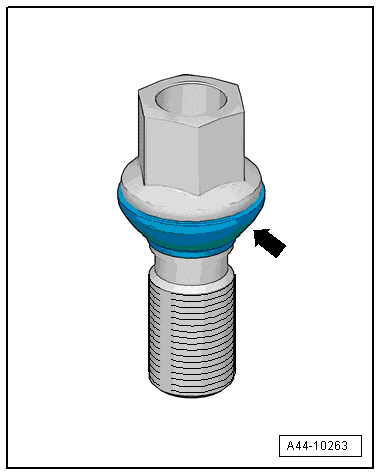

Two-Piece Wheel Bolts with Short Rotatable Spherical Cap
  Wheel Bolt Versions

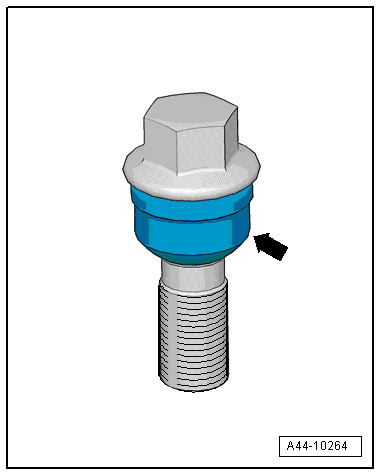

Two-Piece Wheel Bolts With Long Rotatable Spherical Cap
  Wheel Bolt Versions
Wheel Bolts, Anti-Theft Wheel Bolt

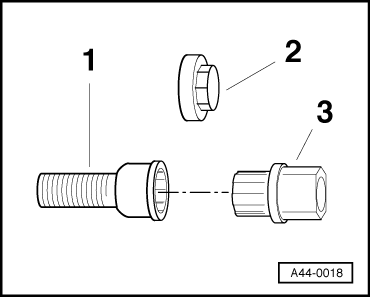

Anti-Theft Wheel Bolts
1 -  Anti-theft wheel bolts
2 -  Cap
3 -  Wheel bolt adapter
  Wheel Bolts, Anti-Theft Wheel Bolt

Wheel Bolts, Master Sets for Anti-Theft Wheel Bolts

Special tools and workshop equipment required
Torque Wrench 1332 40-200Nm -VAG1332-
Wheel Bolt Master Socket Set -T10101-
Wheel Bolt Master Socket Set -T10101A-
Wheel Bolt Master Socket Set -T40004-
Wheel Bolt Master Socket Set -T40073-
