A swelling in the flank of the tire indicates that the substructure of the carcass has been damaged.

Typical causes for such damage include, for example, driving over curbs at a sharp angle.

Pinching the carcass of a tire this way can damage the carcass.

The substructure of the tire is stretched so far that individual fibers in the carcass may break.

The extent of the damage depends on the speed of impact, the angle of impact, the air pressure, the axle load and the type of obstacle.

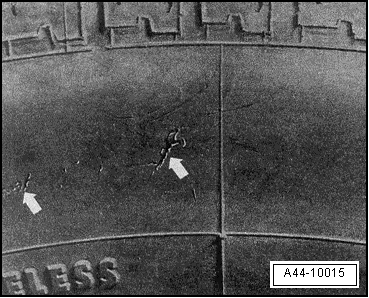

Evidence of Pinching on the Sidewall of a Tire -arrows-

Note

Driving over curbs must be avoided!

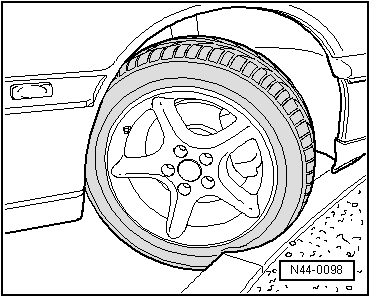

When it cannot be avoided, curbs should be driven over very slowly at the bluntest possible angle.

Interior View of a Tire with a Punctured Carcass.

Due to a severe impact, the carcass was pinched on the rim flange and is ruptured in the contact patch.

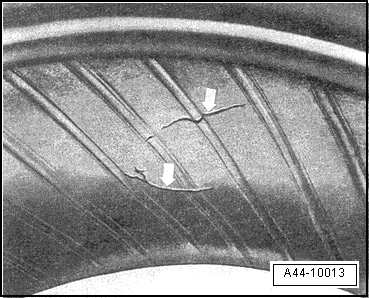

Inside Tire Damage Due to Impact Damage (Double Rupture)

Double rupture -arrows- caused by pinching when driving over a curb. Often not detectable from outside.

Cuts

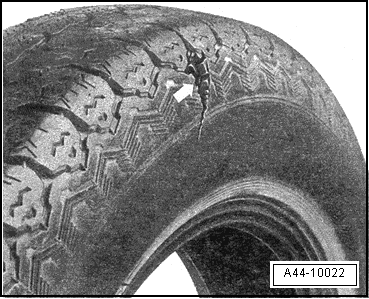

Cut Caused by a Sharp-Edged Obstacle -arrow-.

Wear Spots

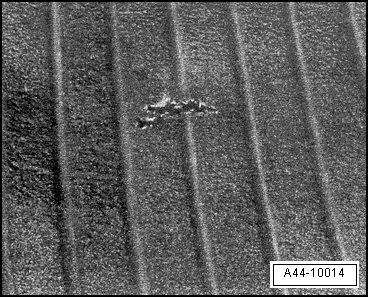

A wear spot is a flat spot on the tread of the tires that can be caused by extreme braking maneuvers on subsurface such as asphalt. At th ...

Foreign Object Damage

Driving over hard, pointed objects like nails, screws and the like can pierce the tire. This always leads to tire damage. ...
