Volkswagen Touran Service Manual: Wheel Balancing, Rim Radial and Lateral Run-Out, Checking

Volkswagen Touran Service Manual / Wheel  and Tire Guide Information / Tires, Mounting / Wheel, Balancing / Wheel Balancing, Rim Radial and Lateral Run-Out, Checking

  Mount the rim on the Balancing Machine.
  Use the Wheel Centering System Adapter -VAS5271-.
  Preload the Tire Dial Gauge approximately 2 mm.
  Turn the rim slowly.

  Note the smallest and the largest dial readings.

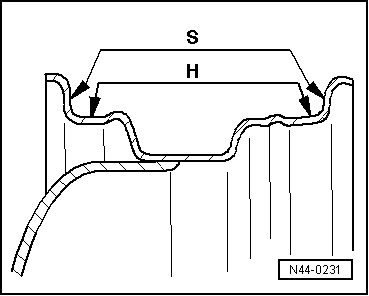

S -  Lateral Run-Out
H -  Radial Run-Out
  Compare determined value with specifications in the table. Refer to → Anchor.
  Note
Peak values on the Tire Dial Gauge due to small irregularities may be disregarded.
  Wheel Balancing, Rim Radial and Lateral Run-Out, Checking
Specified Values for Radial and Lateral Run-Out on the Rim
Rim Radial Run-Out (mm) Lateral Run-Out (mm)
Steel wheel 0.5 0.5
Light alloy wheel 0.5 0.8

  Note
If the measured value exceeds the specified value, no acceptable smooth running can be attained.

    Wheel, Balancing, Tire and Wheel Radial and Lateral Run-Out, Checking
