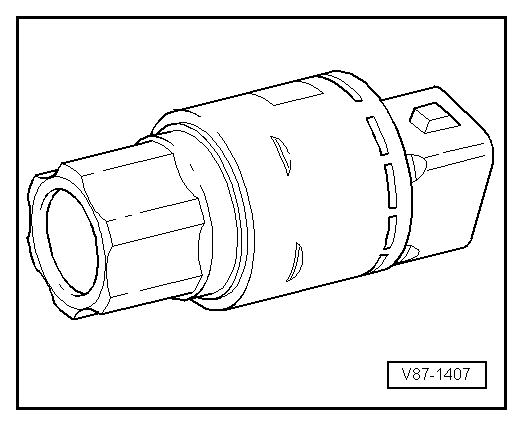

Volkswagen Touran Service Manual: A/C Refrigerant Low Pressure Switch -F73

Volkswagen Touran Service Manual / Heating, Ventilation and Air Conditioning / Refrigerant Circuit General Information / Switches and Sensors on Refrigerant Circuit and Connections / A/C Refrigerant Low Pressure Switch -F73

Note

For switching pressures, removing and installing switches and switch arrangement and version, see vehicle-specific refrigerant circuit.

Refer to → Rep. Gr.87.

Function:

Switches off A/C compressor when there is excessive pressure in the refrigerant circuit (approximately 2 bar (29 psi)).
