Volkswagen Touran Service Manual: Beru Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

Volkswagen Touran Service Manual / Wheel and Tire Guide Information / Tire Pressure Sensor / Tire Pressure Monitoring Sensor, Removing and Installing / Beru Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

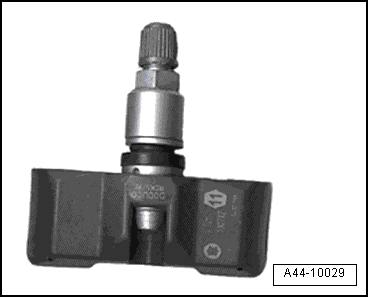

Overview, Beru System

WARNING

If tire sealant was used, then the wheel electronics on that particular wheel must be replaced.

WARNING

Damaged wheel electronics must be replaced.

Beru Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

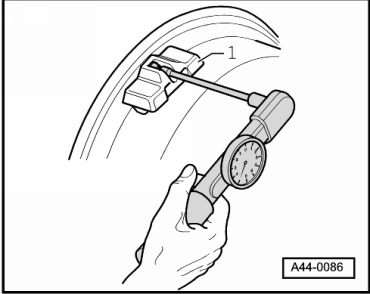

Push the wheel electronics -1- into the bed.

Install on the valve from the back with a microencapsulated screw -item 8- → Item

Note

Replace the microencapsulated screw.

Tighten the microencapsulated screw to 4 Nm on all models.

Special tools and workshop equipment required

Torque Wrench 1410 -VAG1410- and Torque Wrench 1410 Insert - Accessory Kit -VAG1410/1-

Tightening Specifications. Refer to → Anchor.

Tire Pressure Sensor and Metal Valve, Removing and Installing

Special tools and workshop equipment required Torque Wrench 1410 -VAG1410- and Torque Wrench 1331 5-50Nm -VAG1331- ...

Siemens Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

WARNING If tire sealant was used, then the wheel electronics on that particular wheel must be replaced. ...
