Volkswagen Touran Service Manual: Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

Volkswagen Touran Service Manual / Electrical System / Interior Lights, Switches / Cigarette Lighter -U1- / Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

  Note
On some vehicle equipment levels, socket illumination is via Light Emitting Diode (LED) instead of a bulb. These LEDs are integrated with the illumination housing and cannot be serviced or replaced separately.
Various versions of illumination housing with bulb exist. One version allows separate replacement of the illumination bulb, and another where the bulb cannot be serviced or replaced separately. In this case, the entire illumination housing must be replaced.
Removing
  Remove the socket. Refer to

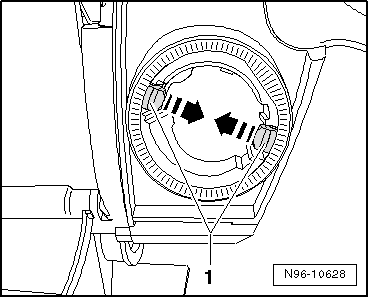

  Depress retainers in direction of -arrows- and remove mounting sleeve with bulb holder.
  Unclip bulb holder from mounting sleeve.
  Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

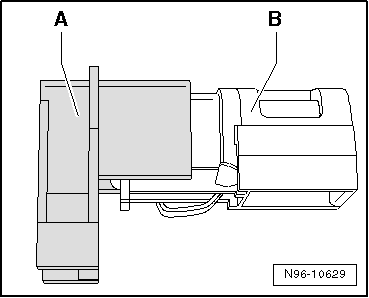

  Separate bulb holder sections -A and B-.

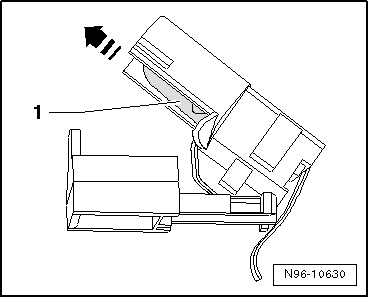

  Open bulb holder section -B-.
  Cigarette Lighter Illumination Bulb -L28-, Removing and Installing
  Remove bulb in direction of -arrow-.
Installing
Install in reverse order of removal.
  Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

Special Tools

Special tools and workshop equipment required

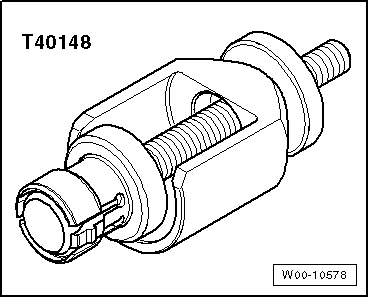

Release Tool for Cigarette Lighter -T40148-
