Volkswagen Touran Service Manual: Plastic Primer
Adhesion Promoter (Glazing)
| Adhesion Promoter -ALO 822 000 10- (glazing) |
| The glazing adhesion promoter is a universal
single-component adhesion promoter for all standard exterior
plastic car parts. |
| This adhesion promoter is characterized by its reliable
adhesion, high elasticity and the ease with which it can be
used. |
| All standard plastic parts used on car exteriors. |
| PP, EPDM, ABS, PC, PPO, PA, R-TPU, PBTP, PVC |
|
|
|

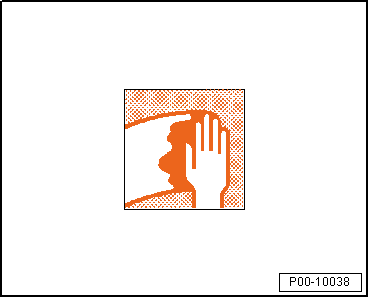

| Pre-treatment of base surfaces: |
| The base surface must be free of separating agents. |
| Before cleaning plastic parts, temper them for 60 minutes at
+60 ℃ to "sweat out" the separating agents. |
| |
Clean using Antistatic Plastic Cleaner -LVM 001 001 A2- or a
milder Silicone Remover, Long -LVM 020 100 A5-. |
 Note
| The effort needed for cleaning depends on the type and
quantity of the separating agent used. We recommend using a
sanding pad to help cleaning |
| Let the thinner evaporate (for example, air-drying overnight
at room temperature or 30-40 minutes at +60 ℃). |
|
|
|
| |
Before priming, lightly clean again using Antistatic Plastic
Cleaner -LVM 001 001 A2- or Silicone Remover, Long -LVM 020 100
A5- (antistatic effect). |
|
|
|
| |
Processing viscosity 4 mm for +20 C (68 F), German
Industry Standardization 53211 |
Note
| Do not add any thinner! The delivery viscosity is the same
as the processing viscosity. |
| Processing viscosity 4 mm gravity feed spraygun "Compliant"
and "HVLP": |
|
|
|
| |

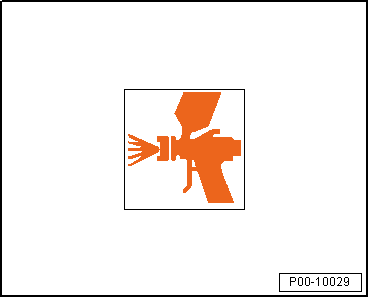

Set spray nozzle (see manufacturer's information):
"Compliant" 1.2 to 1.4 mm. |
| |
Set spray nozzle (see manufacturer's information): "HVLP"
1.3 to 1.5 mm. |
| |
Set spray pressure (see manufacturer's information):
"Compliant" to 2.0 to 2.5 bar. |
| |
Set atomizing pressure (see manufacturer's information):
"HVLP" 0.7 bar. |
|
|
|
| |

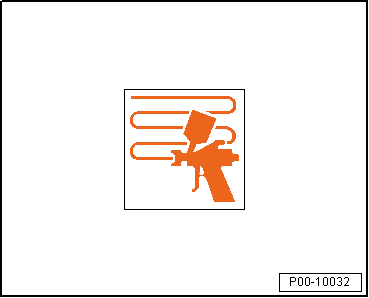

A preliminary spray application is 1 to 2 mm. |
|
|
|

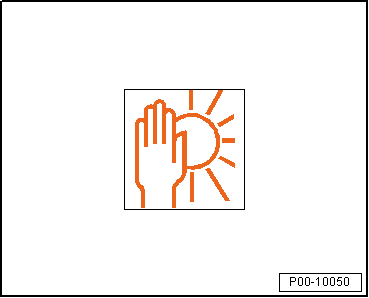

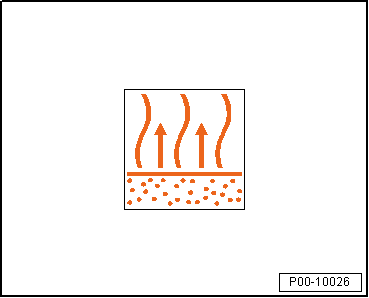

| Air dry at +20 C (68 F) room temperature, can be sprayed
over after 15 minutes. |
|
|
|
| Can be sprayed over with two-part HS filler elasticized with
Elastic Additive -ALZ 011 001- after drying time at +20 C (68
F). |
| Afterwards, can be painted over with: |
| Water-based base paint and two-part HS clear coat |
|
|
|

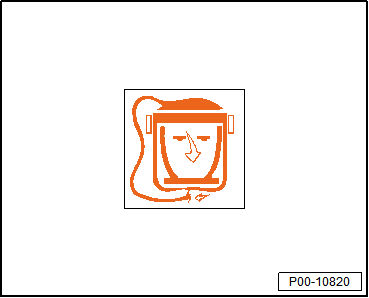

| Personal Protective Equipment: |
| Note the safety data sheets |
| Wear the personal protective equipment during application |
|
|
|

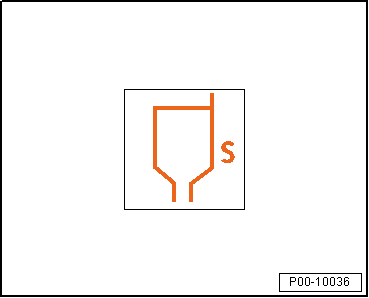

| Delivery Viscosity |
11 seconds |
| Flashpoint: |
above +23 C (73.4 F) |

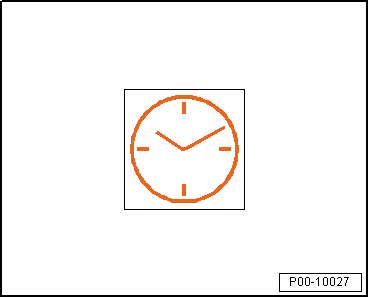

| The guaranteed shelf life is 24 months from production date.
Use no later than the date indicated on the label and store in
original container at +20 C (68 F). |
|
|
|

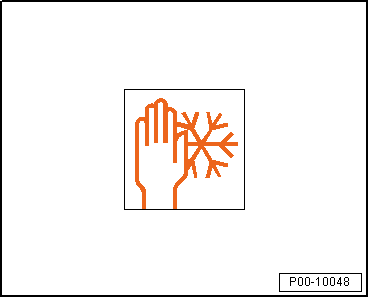

| The prescribed storage temperature is +20 C (68 F) (not to
fall below +5 C (41 F)). |
|
|
|
Definition:
Two-Part Wash Primer -LHV 043 000 A2-
Edition 10/2010
