Volkswagen Touran Service Manual: Valve, Removing and Installing, Metal Valve

Volkswagen Touran Service Manual / Wheel and Tire Guide Information / Rim Information / Valve, Removing and Installing / Valve, Removing and Installing, Metal Valve

Special tools and workshop equipment required

Torque Wrench -VAG1410-

Perform the Following:

Removing

Remove the Tire Pressure Monitoring Sensor. Refer to → Chapter "Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version".

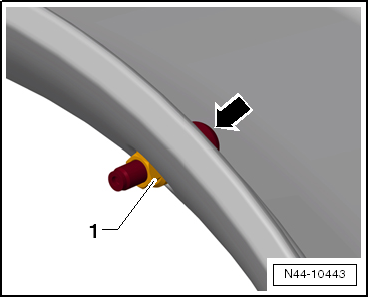

Remove the nut -1- from the metal valve.

Counterhold -arrow- the metal valve using a retainer (for example 2 mm spiral bore) while doing so.

Installing

Caution

Only apply the specified torque to tighten the nut for the metal valve. Tightening more is not permitted because it damages the seal.

Valve, Removing and Installing, Metal Valve

Tighten the nut -1- of the metal valve.

Counterhold -arrow- the metal valve using a retainer (for example 2 mm spiral bore) while doing so.

Install the Tire Pressure Monitoring Sensor. Refer to → Chapter "Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version".

Tightening Specifications

Refer to → Chapter "Overview - Tire Pressure Monitoring Sensor without Valve"
