Volkswagen Touran Service Manual: Component Overview

Overview - Wheel

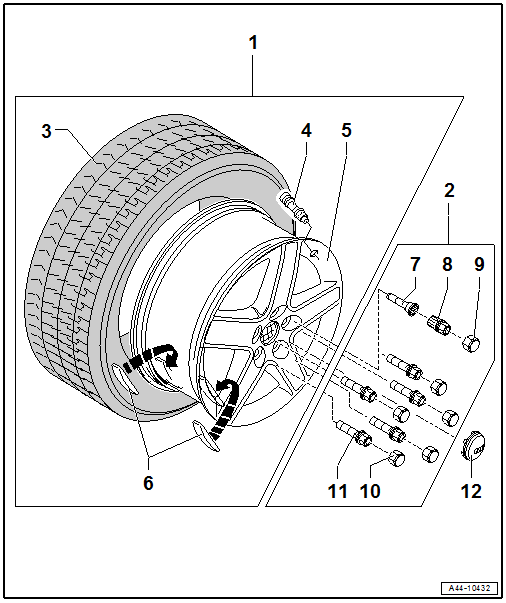

Overview - Wheel, Standard

Overview - Wheel, Standard

1 -  Wheel
Installing the wheel. Refer to → Chapter "Wheel, Mounting".
2 -  Wheel Bolts
There are different versions. Refer to → Chapter "Wheel Bolts".
3 -  Tires
Refer to → Chapter "Tire Information"
4 -  Valve/Tire Pressure Monitoring Sensor
Always replace the valve
Only use a new valve. Refer to the Parts Catalog.
Refer to → Chapter "Tire Pressure Sensor"
5 -  Rim
Note assembly instructions. Refer to → Chapter "Tires, Mounting".
Refer to → Chapter "Rim Information"
Refer to → Chapter "Overview - Rim"
6 -  Adhesive Balancing Weights
Maximum 60 grams per rim flange permitted
Clean wheel where it will be adhered so it is free of dirt and grease
Remove protective film.
Attach balance weights to intended surfaces.
7 -  Anti-Theft Wheel Bolts
Note assembly instructions. Refer to → Chapter "Wheel Bolts".
Operating. Refer to → Fig. ""Anti-Theft Wheel Bolts""
8 -  Adapter for the Anti-Theft Lockable Wheel Bolt
Place on wheel bolt. Refer to → Fig. ""Anti-Theft Wheel Bolts""
9 -  Anti-Theft Wheel Bolt Cap
10 -  Wheel Bolt Cap
11 -  Wheel Bolts
Tightening specification. Refer to → Suspension, Wheels, Steering; Rep. Gr.44.
  Note
Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.
Note assembly instructions. Refer to → Chapter "Wheel Bolts".
12 -  Hub Cap
Removing and Installing. Refer to → Chapter "Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and Installing".

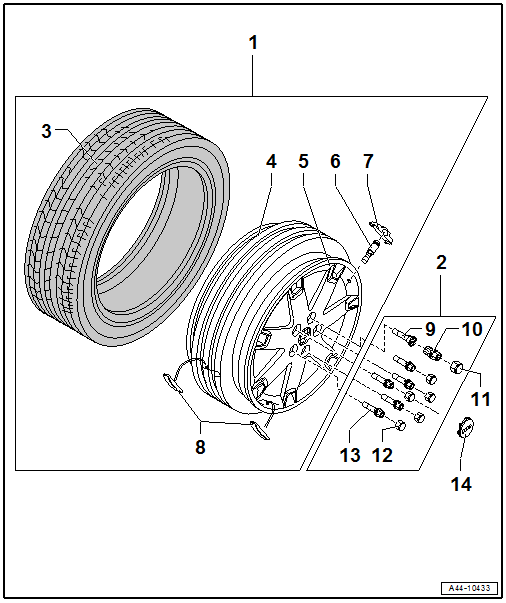

 Overview - Wheel, RAX

 Overview - Wheel, RAX

1 -  Wheel
Installing the wheel. Refer to → Chapter "Wheel, Mounting".
2 -  Wheel Bolts
There are different versions. Refer to → Chapter "Wheel Bolts".
3 -  PAX Tires
Side Wall Lettering. Refer to → Chapter "Run-Flat Tire (PAX), Lettering On Side Wall".
4 -  Support Ring
5 -  Wheel for PAX Tires
Note assembly instructions. Refer to → Chapter "Tires, Mounting".
6 -  Metal Valve Body
Refer to the Parts Catalog for the allocation of the only valves to be installed.
delivered complete
7 -  Wheel Electronics
Batteries must be completely replaced.
Remaining battery life, temperature and pressure can be read via diagnosis with Vehicle Diagnostic Tester.
Beru wheel electronics system. Refer to → Chapter "Beru Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing,".
Siemens wheel electronics system. Refer to → Chapter "Siemens Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing".
8 -  Adhesive Balancing Weights
Maximum 60 grams per rim permitted
Clean wheel where it will be adhered so it is free of dirt and grease
Remove protective film.
Attach balance weights to intended surfaces.
9 -  Anti-Theft Wheel Bolts
Note assembly instructions. Refer to → Chapter "Wheel Bolts".
Operating. Refer to → Fig. ""Anti-Theft Wheel Bolts""
10 -  Adapter for the Anti-Theft Lockable Wheel Bolt
Place on wheel bolt. Refer to → Fig. ""Anti-Theft Wheel Bolts""
11 -  Anti-Theft Wheel Bolt Cap
12 -  Wheel Bolt Cap
13 -  Wheel Bolts
  Note
Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.
Note assembly instructions. Refer to → Chapter "Wheel Bolts".
14 -  Hub Cap
Removing and Installing. Refer to → Chapter "Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and Installing".
Permitted Tread Depth - Variance
For all four wheels use only tires of the same construction type, and tread. Always use tires with the deepest tread depth on the front a ...

Tires, Mounting
...
