Volkswagen Touran Service Manual: EU Tire Label, Categories

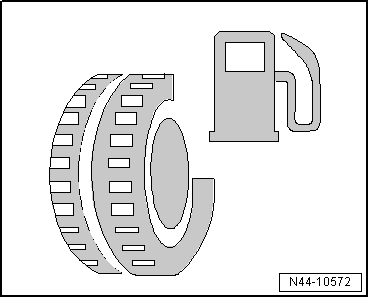

Rolling Resistance. Refer to
→ Anchor

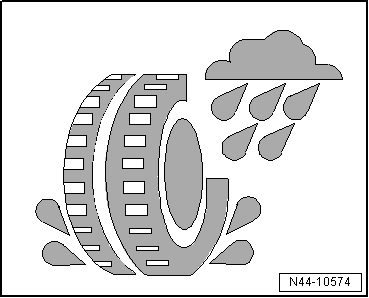

Wet Grip. Refer to
→ Anchor

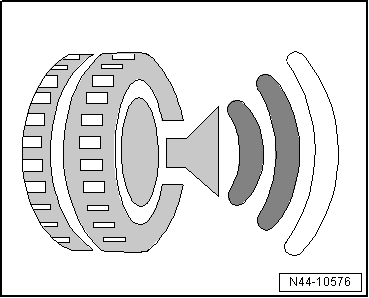

Noise Emission. Refer to
→ Anchor



Is defined as the amount of energy used by a tire to travel
to a given distance.
This corresponds to the loss of energy in units per defined
distance.
This is expressed as an quotient of energy in Newton meters
(Nm) and of distance in meters (m). Thus, the rolling resistance
is expressed as a force in Newtons (N).
The rolling resistance of a tire is defined by the rolling
resistance coefficient c _{R}:
c_{R}  Rolling resistance
coefficient
F_{R}  Rolling resistance force
Z  Vehicle weight (sum of all wheel loads)
To reduce rolling resistance
To economize fuel and CO_{2}



Separated into fuel efficiency classes A to G
Note
The fuel efficiency classes are listed in EU Regulation (EG)
1222/2009. Tires categories are established by this regulation.
The rolling resistance is ascertained by prescribed tests
performed by the tire manufacturer.
The lower the rolling resistance, the lower the fuel
consumption.

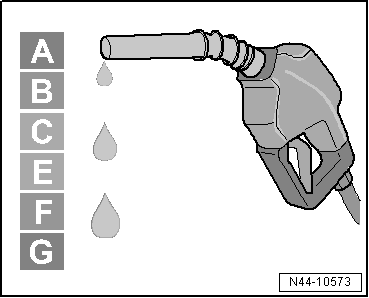

A
Lowest rolling resistance coefficient = lowest fuel
consumption
B
+ 0.10 liters / 100 km
C
+ 0.12 liters / 100 km
E
+ 0.14 liters / 100 km
F
+ 0.15 liters / 100 km
G
+ 0.15 liters / 100 km



For the wet grip, the wet grip parameter G must be
determined. The wet grip parameter G is defined by testing the
distance required by a standardized vehicle to brake from 80
km/h (49.7 mph) down to 20 km/h (12.42 mph) on a wet, even road
surface. The test is performed using predefined standard
reference test tires (SRTT), allowing for the wet grip parameter
G to be determined. Mean fully developed deceleration (mfdd) is
used for the test.
The mean fully developed deceleration is determined thusly:
S  the braking distance between 80 km/h (49.7 mph) and 20
km/h (12.42 mph) in meters
The wet grip parameter G is determined thusly:

G =
mfdd of the
tire to be checked
mfdd of the standard reference tire

mfdd  mean fully developed deceleration
Sharp decrease in braking distance



Separated into wet grip classes A to G
Classes D and G are not used
Note
The wet grip classes are listed in EU Regulation (EG)
1222/2009. Tires categories are established by this regulation.
The lower the wet grip parameter, the shorter the braking
distance.

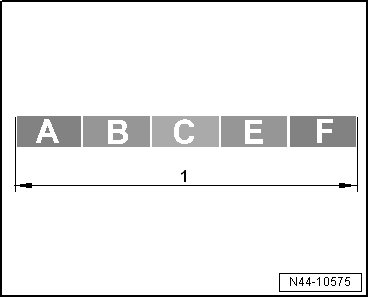

A
lowest wet grip parameter = shortest braking distance
B
3 to 6 m longer braking distance compared to category A
C
3 to 6 m longer braking distance compared to category B
E
3 to 6 m longer braking distance compared to category C
F
3 to 6 m longer braking distance compared to category E
1
When emergency braking at 80 km/h (49.7 mph), the difference
between using class A and class F tires can be more than 18 m.



Take measurements from outside of the vehicle only

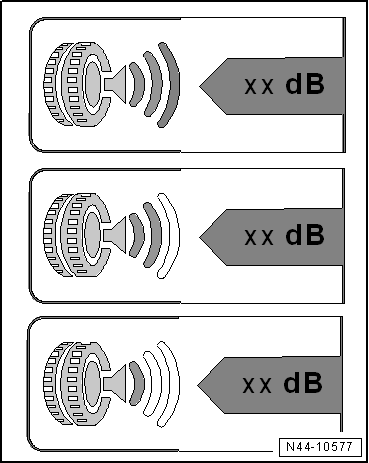

Divided into three classes



Three black waves signify the worst performance. The tire
produces external rolling noise, which falls below the current
EU Directive 2001/43/EG limit. The limit surpasses the future
limit set by EU Regulation (EG) 661/2009, which will go into
effect in 2016.
Two black waves: the tire noise level does not exceed the
future limit set by EU Regulation (EG) 661/2009, which will go
into effect in 2016.
One black wave: the tire noise level does not exceed the
future limit set by EU Regulation (EG) 661/2009, which will go
into effect in 2016, by at least three decibels.
Note
Reducing the noise measured value from two black waves down
to one corresponds to 3 dB, which halves the noise level.
Please note that extreme tire rolling noise does not always
correspond to the noise in the vehicle interior.



To reduce fuel usage
To improve road safety
To reduce traffic noise
The EU Tire Label Provides th ...
