Volkswagen Touran Owners Manual: Overview of the driver door

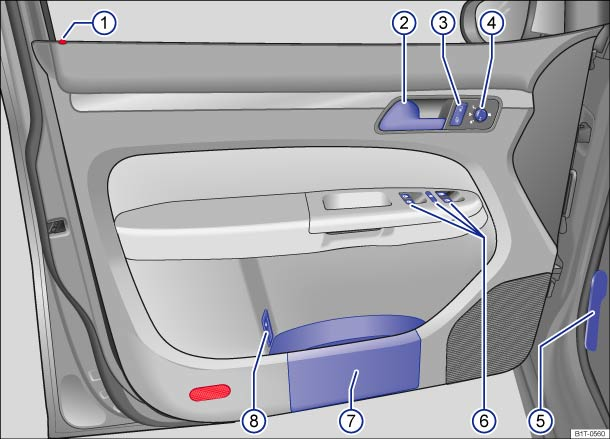

Fig. 4 Overview of the controls in the driver door (left-hand drive vehicles). The controls are mirrored for right-hand drive vehicles

Key for  :

  1. Warning lamp for anti-theft alarm or deadlock mechanism
  2. Door release lever
  3. Central locking button for locking and unlocking the vehicle
  4. Switch for adjusting the exterior mirrors  

    • Exterior mirror setting
    • Exterior mirror heating
    • Folding in exterior mirrors
  5. Handle for releasing the bonnet
  6. Buttons for operating the electric windows  

    • Electric windows
    • Safety button for the rear electric windows
    • electrical childproof locks
  7. Stowage compartment with bottle holder and space for a high-visibility waistcoat
  8. Tank flap release button
