Volkswagen Touran Service Manual: Factory Paint Paint Structure

Structure of a Solid-Color Paint System, Conventional
Approximately 80-120 mm thick
1 -  Steel Panel
2 -  Zinc Phosphate Coating
3 -  Electrophoretic Dip Primer
4 -  Intermediate Filler
5 -  Two-Part Solid Top Coat


Factory Paint Paint Structure

Structure of a Solid-Color Paint System, Water-Based Paint
Approximately 80-130 mm thick
1 -  Steel Panel
2 -  Zinc Phosphate Coating
3 -  Cathodic Electrophoretic Painting
4 -  Water-Based Filler
5 -  Water-Based Paint
6 -  Two-Part Clear Coat
  Factory Paint Paint Structure

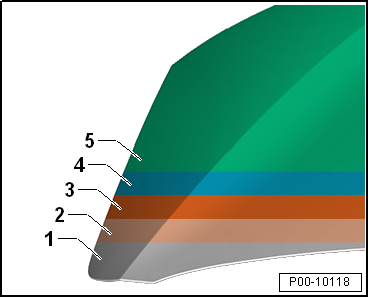

Structure of a Metallic and Pearl Color Paint System, Water-Based Paint
Approximately 80-130 mm thick
1 -  Steel Panel
2 -  Zinc Phosphate Coating
3 -  Cathodic Electrophoretic Painting
4 -  Water-Based Filler
5 -  Water-Based Metallic/Pearl Color Base Coat
6 -  Two-Part Clear Coat
  Factory Paint Paint Structure
Structure of a Two-Coat Paint System, Conventional
Approximately 100 mm thick
1 -  Steel Panel
2 -  Zinc Phosphate Coating
3 -  Cathodic Electrophoretic Painting
4 -  Intermediate Filler
5 -  Solid Top Coat
6 -  Two-Part Clear Coat
  Factory Paint Paint Structure

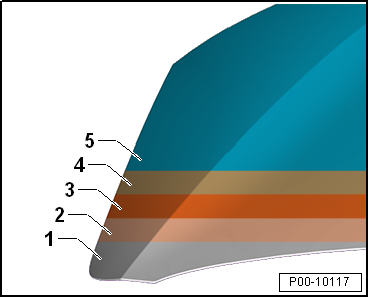

Structure of a 2010 Paint Process Paint System, Water-Based Paint
Approximately 80-120 mm thick
1 -  Steel Panel
2 -  Zinc Phosphate Coating
3 -  Cathodic Electrophoretic Painting
4 -  Water-Based Paint (Functional Coating)
5 -  Two-Part Clear Coat
  Factory Paint Paint Structure

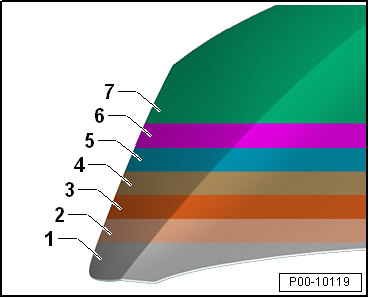

Structure of a Three-Coat Paint System, Water-Based Paint
Approximately 80-140 mm thick
1 -  Steel Panel
2 -  Zinc Phosphate Coating
3 -  Cathodic Electrophoretic Painting
4 -  Water-Based Filler
5 -  Water-Based Paint (Pigmented Basic Color)
6 -  Water-Based Paint (Effect Coating)
7 -  Two-Part Clear Coat
  Note
The approximate specification for the layer thickness can vary depending on the color and illustrates the differences in vertical and horizontal surfaces.
The specifications can be exceeded on individual vehicles when painting a second or multiple times. This however does not have to be mentioned.
  Factory Paint Paint Structure
General Information
...
