Volkswagen Touran Owners Manual: Front view

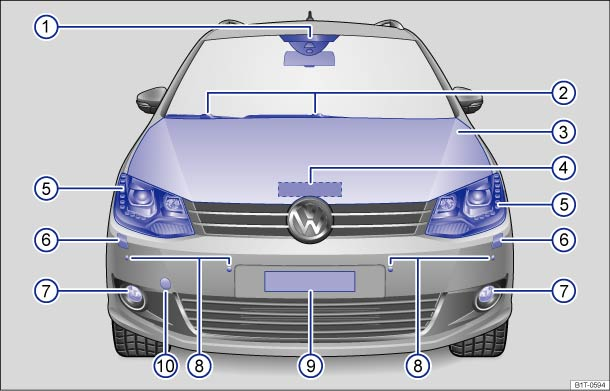

Fig. 2 Overview of the front of vehicle

Key for  :

  1. Sensor or camera window on the mirror base for:

    • Rain sensor
    • Main beam control / automatic main beam control
    • Lane Assist
    • Road sign recognition (Sign Assist)
  2. Front windscreen wipers
  3. Bonnet
  4. Bonnet release lever   ,
  5. Headlights   ,
  6. Headlight washer system
  7. Fog lights or bend lighting  
  8. Sensors for the front parking distance warning system   or Park Assist system
  9. Front number plate holder
  10. Mounting for the front towing eye behind a cover
