Volkswagen Touran Owners Manual: Rear view

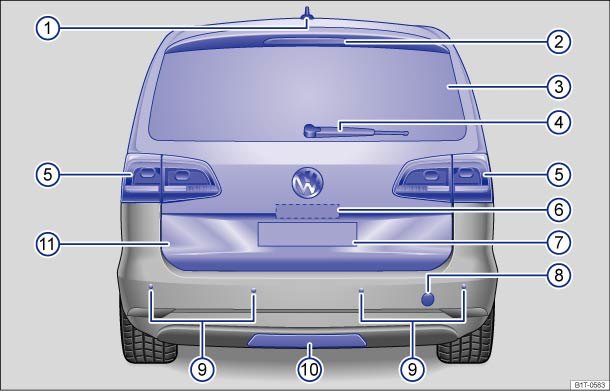

Fig. 3 Overview of the rear

Key for  :

  1. Roof aerial
  2. High-mounted brake light
  3. Rear window

    • Rear window heating
  4. Rear wiper
  5. Tail light cluster  
  6. Button for opening the tailgate   and the location of the Rear Assist rear-view camera   and the number plate lights
  7. Rear number plate holder
  8. Mounting for the rear towing eye behind a cover
  9. Sensors for the rear parking distance warning system   or Park Assist system
  10. Area of towing bracket
  11. Tailgate
