Volkswagen Touran Service Manual: High Pressure Sensor -G65

Volkswagen Touran Service Manual / Heating, Ventilation and Air Conditioning / Refrigerant Circuit General Information / Switches and Sensors on Refrigerant Circuit and Connections / High Pressure Sensor -G65

Note

For switching pressures, removing and installing switches and switch arrangement and version, see vehicle-specific refrigerant circuit.

Refer to → Rep. Gr.87.

This High Pressure Sensor -G65- is installed in place of an A/C Pressure Switch -F129-.

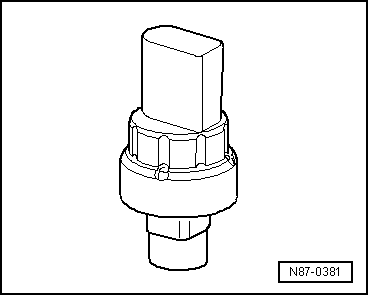

The high-pressure sensor generates a square-wave signal or a data telegram when voltage is applied. This signal changes along with pressure in the system.

The downstream control modules (coolant fan control module, ECM), Front A/C Display Control Head -E87- or Climatronic Control Module -J255-, etc.) use this signal to calculate pressure in the refrigerant circuit and to activate the coolant fans and motor and A/C Clutch -N25- or to change the A/C Compressor Regulator Valve -N280- activation.

A/C Pressure Switch -F129

Note For switching pressures, removing and installing switches and switch arrangement and version, see vehicle-specific refrigerant circuit. ...

A/C Pressure/Temperature Sensor -G395

Note For switching pressures, removing and installing switches and switch arrangement and version, see vehicle-specific refrigerant circuit. ...
