Volkswagen Touran Owners Manual: Lifting the vehicle with the jack

Fig. 208 The jacking points

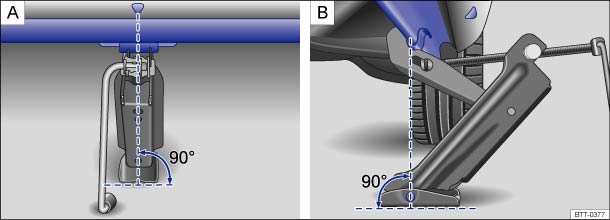

Fig. 209 Jack at the rear on the left-side of the vehicle

First read and observe the introductory information and safety warnings

The jack may be applied only at the jacking points shown (markings on the body)  . Always use the jacking point closest to the wheel you are working on  .

Raise the vehicle using only the designated jacking points.
