Volkswagen Touran Owners Manual: Operating notes for the heating and fresh air system

Volkswagen Touran Owners Manual / While driving / Air conditioning system / Heating, ventilating, cooling / Operating notes for the heating and fresh air system

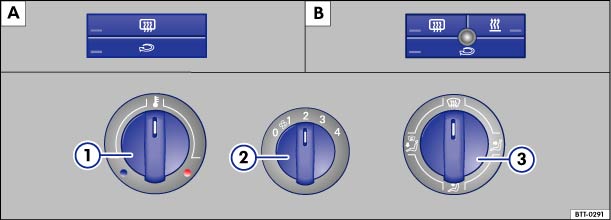

Fig. 161 In the centre console: rotary control for the heating and fresh air system with controls for vehicles without auxiliary heater (A) or with auxiliary heater (B)

First read and observe the introductory information and safety warnings

Temperature

The desired interior temperature cannot be lower than the air outside as the heating and fresh air system cannot cool or dehumidify the air.

Settings for optimal road visibility

  • Switch off air recirculation mode   .
  • Set blower   to level 1 or 2.
  • Set the temperature selector   to the middle position.
  • Open and position all vents on the dash panel   .
  • Turn the air distribution controller   to the desired position.
