Volkswagen Touran Service Manual: Overview - Cigarette Lighter -U1

Volkswagen Touran Service Manual / Electrical System / Interior Lights, Switches / Cigarette Lighter -U1- / Overview - Cigarette Lighter -U1

Caution

Using force to remove cigarette lighter sockets without illumination can result in damage to the mounting sleeve retainers.

The Cigarette Lighter Release Tool -T40148- can only be used to remove cigarette lighter sockets with illumination.

The puller is not capable of releasing the retainers on power sockets without illumination.

Sockets without illumination usually cannot be removed without damage.

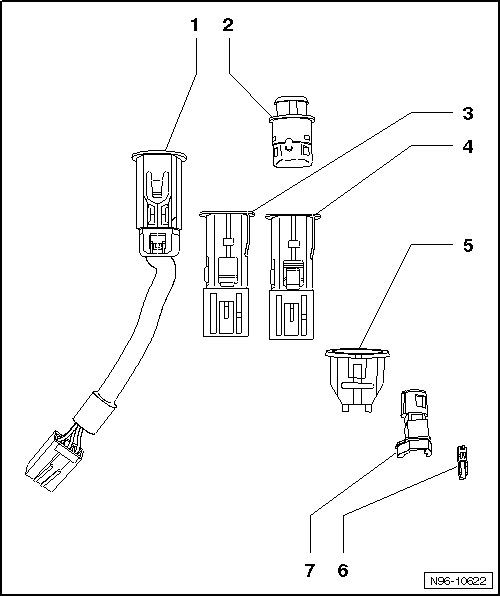

Overview - Cigarette Lighter -U1

1 -	Cigarette Lighter Socket with Cable Pig Tail

2 -	Cigarette Lighter

3 -

Socket

4 -	Cigarette Lighter Receptacle

5 -	Mounting Sleeve

6 -	Bulb W 5 12V 1.2 Watt

7 -	Bulb Holder

General Information

The following descriptions also apply to Left Rear Cigarette Lighter -U3-, Right Rear Cigarette Lighter -U7-, Rear Cigarette Lighter -U9-, 12 V Socket 2 -U18-, 12 V S ...

Cigarette Lighter Socket, Removing and Installing

Special tools and workshop equipment required Cigarette Lighter Release Tool -T40148- Note The removal an ...
