Volkswagen Touran Owners Manual: Overview of the driver side

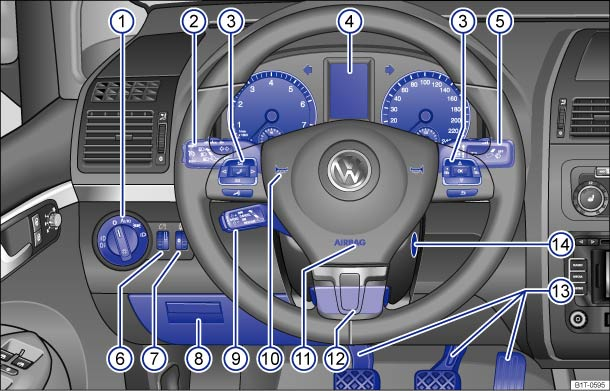

Fig. 5 Overview of the driver side (left-hand drive vehicles)

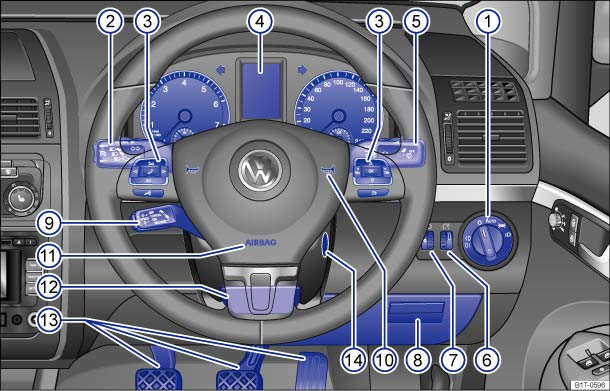

Fig. 6 Overview of the driver side (right-hand drive vehicles)

Key for   and  :

  1. Vent
  2. Button for interior monitor
  3. Light switch

    • Light switched off --
    • Automatic headlight control - -
    • Side light and dipped beam
    • Fog lights
  4. Lever for  

    • Main beam headlights
    • Headlight flasher
    • Turn signal
    • Parking lights
    • the cruise control system (CCS) / - - / - -
    • Button for the driver assist systems
  5. Controls on the multi-function steering wheel:  

    • Volume setting for the radio, navigation announcements or a telephone conversation
    • Mute function for the radio or activating the voice control system
    • Opening the telephone main menu or accepting a telephone call
    • Control buttons for the Volkswagen information system , ,
  6. Instrument cluster:

    • Instruments
    • Display
    • Warning lamps and indicator lamps
  7. Lever for windscreen wipers and washers  

    • Windscreen wipers
    • Interval wipe for the windscreen
    • Flick wipe x
    • Windscreen wiper
    • Wash and wipe system for the windscreen
    • Rear wiper
    • Wash and wipe system for the rear window
    • Control lever with buttons for the Volkswagen information system - , / .
  8. Brightness control for instrument and switch illumination
  9. Headlight range control
  10. Stowage compartment
  11. Lever for the cruise control system (CCS) / - - / - -
  12. Horn (works only when the ignition is on)
  13. Driver front airbag
  14. Lever for adjustable steering column  
  15. Pedals
  16. Ignition lock
