Volkswagen Touran Service Manual: Protecting

Volkswagen Touran Service Manual / Electrical System / Wiring / Contact Surface Cleaning Set -VAS6410 / Protecting

Caution

Missing protection leads to the electrical system damage.

Note

All threaded connections must be tightened to the specified torque.

When applying protection, always use the accompanying hose on the protection container.

Protection wax is used in the cool area.

Cavity protection wax is used in the warm area.

The protection material draws itself into the affected places by capillary action.

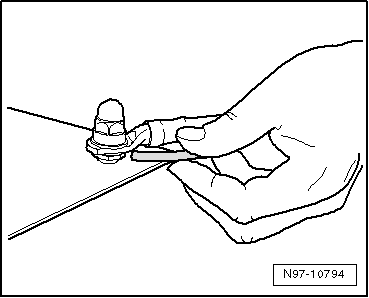

Hold the injector under the wiring eyelet and spray all around the pins.

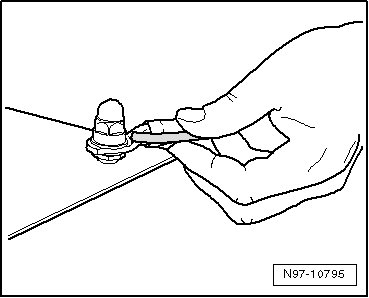

Hold the injector above the wiring eyelet and spray all around the pins and wiring eyelet.
