Volkswagen Touran Service Manual: Refrigerant Circuit Design

Volkswagen Touran Service Manual / Heating, Ventilation and Air Conditioning / Refrigerant Circuit General Information / Refrigerant Circuit Design

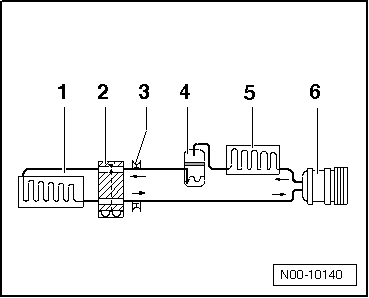

Refrigerant Circuit with Expansion Valve and Evaporator

1 -	Evaporator

2 -	Expansion Valve

3 -	Valve for extracting, filling and measuring

4 -	Receiver/dryer with dryer bag/dryer cartridge

5 -

Condenser

6 -	A/C Compressor

Note

Arrows point in direction of refrigerant flow.

Refrigerant Circuit with Expansion Valve and Evaporator

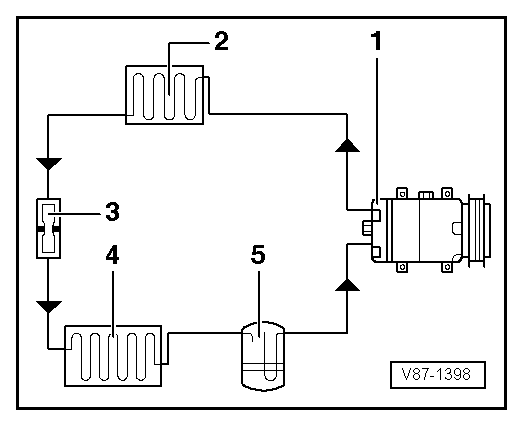

Refrigerant Circuit with Restrictor and Reservoir

1 -	A/C Compressor

2 -

Condenser

3 -	Restrictor

4 -	Evaporator

5 -	Reservoir with dryer bag

Note

Arrows point in direction of refrigerant flow.

Refrigerant Circuit with Restrictor and Reservoir

Pressure Relief Valve

Caution Non-approved tools or materials such as leak sealing additives can cause damage or malfunctions in the sys ...
