Volkswagen Touran Owners Manual: Retrofitting a towing bracket

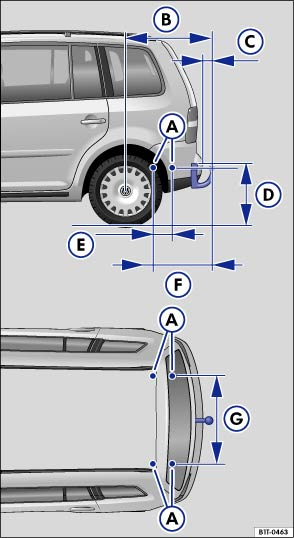

Fig. 108 Dimensions and attachment points for retrofitting a towing bracket

First read and observe the introductory information and safety warnings

Volkswagen recommends having the towing bracket retrofitted by a qualified workshop. The cooling system may need to be modified or heat shields may need to be fitted. Volkswagen recommends using a Volkswagen dealership for this purpose.

The dimensions must be adhered to for the retro-fitting of a towing bracket. Always observe the minimum distance given from the middle of the ball coupling   to the surface of the road. This also applies when the vehicle is fully laden, including maximum drawbar load.

Dimensions  :

  1. Attachment points.
  2. 910 mm
  3. at least 65 mm
  4. 350 – 420 mm
  5. 206 mm
  6. 606 mm
  7. 1,052 mm

WARNING

Any electrical accessories which are not connected properly could cause faults in the entire vehicle electronics system and also cause accidents and serious injuries.
  • Never connect the trailer's electrical system directly with the electrical connections of the tail lights or to other unsuitable electricity supplies. Only a suitable connector may be used to connect the trailer.
  • Have a qualified workshop retrofit a towing bracket to the vehicle.

WARNING

If the towing bracket is unsuitable or badly fitted, the trailer could become detached from the towing vehicle. This could cause accidents and fatal injuries.

Only use towing brackets which have been approved by Volkswagen for your vehicle type.
    Trailer stabilisation
    First read and observe the introductory information and safety warnings The trailer stabilisation function is an extension to the electronic stabilisation programme (ESP). It helps, in conju ...

    Maximum permitted trailer weights
    First read and observe the introductory information and safety warnings All data in the official vehicle documents take precedence over these data. All data in this manual are valid for th ...
