Volkswagen Touran Service Manual: Run-Flat System PAX, Examining Support Ring

As with the tire, the supporting ring is generally not replaced after driving with flat tire.

Replace the support ring if the following damages have occurred:

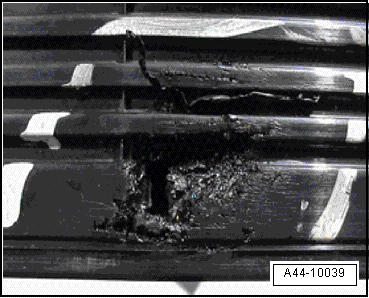

Blowouts or missing parts
  Run-Flat System PAX, Examining Support Ring

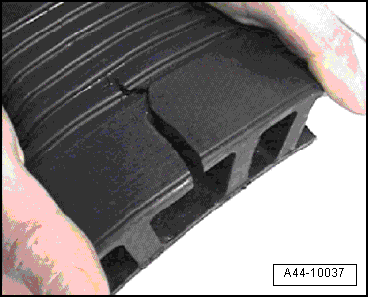

Cracks in partitions
  Run-Flat System PAX, Examining Support Ring

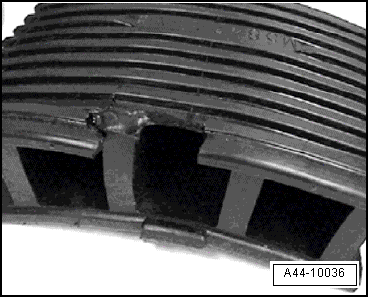

Stitch damage and holes
  Run-Flat System PAX, Examining Support Ring

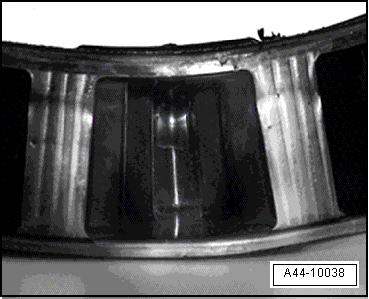

Bubbles and discoloration due to overheating
Repairs on Tires
  Note
Repairs on tires with emergency running characteristics (PAX) must not be performed with adhesive tape.
Tire repair sprays must not be used on tires with emergency running characteristics (PAX) because these products are not compatible with the gel in the tires.
  Run-Flat System PAX, Examining Support Ring
Run-Flat System PAX, Support Ring
Dimensions     Overview of the most important dimensions: Names Example: ...

Tire Pressure Sensor
...
