Volkswagen Touran Service Manual: Run-Flat System PAX, Support Ring

Dimensions

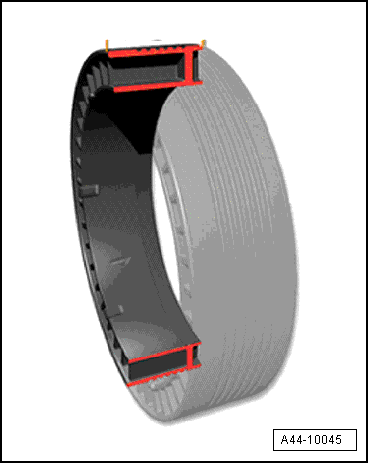

Overview of the most important dimensions:
Names
Example: 90-500(35) CLI A 1 876107
90 -  Designated width in millimeters
500 -  Designated diameter in millimeters
35 -  Height in millimeters
CLI -  Support ring versions: CLI - Clip supporting ring/FL - standard supporting ring
A -  Build type index, asymmetrical. Indication of wheels with emergency running characteristics (PAX)
1 -  Supporting ring versions
876107 -  CAI, international item code
  Run-Flat System PAX, Support Ring

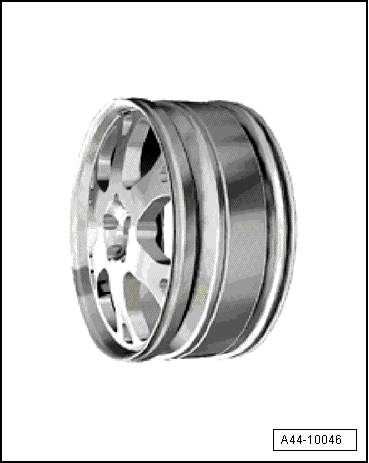

Run-Flat System PAX, Dimensions and Designations on PAX Rims
Example: 235 x 500 A - 5 - 41
235 -  Designated width in millimeters
x -  One-part
500 -  Designated diameter of standardized rim seat in millimeters
A -  Asymmetrical
5 -  Number of bolt holes
41 -  Offset in millimeters


Run-Flat System PAX, Dimensions and Designations on PAX Rims

Run-Flat System PAX
...

Run-Flat System PAX, Examining Support Ring
As with the tire, the supporting ring is generally not replaced after driving with flat tire.     Replace the sup ...
