Volkswagen Touran Owners Manual: Seat belt routing

Volkswagen Touran Owners Manual / Before the journey / Sitting correctly and safely / Seat belts / Seat belt routing

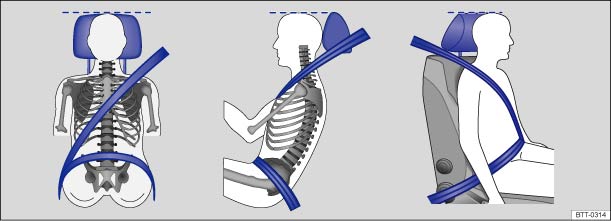

Fig. 60 Correct seat belt routing and head restraint adjustment

Fig. 61 Correct seat belt routing during pregnancy

First read and observe the introductory information and safety warnings 

Seat belts will offer an optimum level of protection during an accident only when they are routed correctly. Correct seat belt routing reduces the risk of severe or fatal injuries. Correct seat belt routing also holds the vehicle occupants in position so that an inflating airbag can offer the maximum level of protection. Therefore you must always fasten seat belts and make sure the seat belt routing is correct.

An incorrect sitting position can cause severe or fatal injuries   .

Correct seat belt routing

  • The shoulder part of the seat belt must always lie on the centre of the shoulder, never across the neck, over or under the arm or behind the back.
  • The lap part of the seat belt must always lie across the pelvis, never across the stomach.
  • The seat belt must always lie flat and snugly on the body. Tighten the belt if necessary.

For pregnant women the seat belt must be positioned evenly over the chest and as low as possible over the pelvis. It must lie flat so that no pressure is exerted on the lower body - this applies for the entire course of the pregnancy  .

Correct seat belt routing according to height

The following equipment can be used to adjust the seat belt routing:

  • Belt height adjuster for the front seats.
  • Front seat height adjustment.

WARNING

Incorrect seat belt routing can cause severe injuries in the event of an accident or a sudden braking or driving manoeuvre.
  • The seat belts offer best protection only when the backrests are in an upright position and the seat belts have been fastened properly.
  • The seat belt itself or a loose seat belt can cause serious injuries if the seat belt shifts from harder body parts in the direction of softer body parts (e.g. stomach).
  • The shoulder part of the seat belt must lie on the centre of the shoulder and never under the arm or across the neck.
  • The seat belt must lie flat and snugly on the chest.
  • The lap part of the seat belt must lie across the pelvis and never across the stomach. The seat belt must lie flat and snugly on the pelvis. Tighten the belt if necessary.
  • The lap part of the seat belt must, for pregnant women, be a low as possible over the pelvis and lie flat around the round stomach.
  • Do not twist the belt webbing while the seat belt is being worn.
  • Never hold the seat belt away from the body by hand.
  • The belt webbing should not lie over hard or fragile objects, such as glasses, pens or keys.
  • Never use seat belt clips, retaining rings or similar items to alter the seat belt routing.

If a person's physical build prevents them from routing the seat belt properly, contact a qualified workshop to find out about any special modifications so that the seat belts and airbags can provide the optimum level of protection. Volkswagen recommends using a Volkswagen dealership for this purpose.
