Volkswagen Touran Service Manual: Single Wire Seal Assembly Tools

Volkswagen Touran Service Manual / Electrical System / Wiring / Wiring Harness and Connector Repairs / Single Wire Seal Assembly Tools

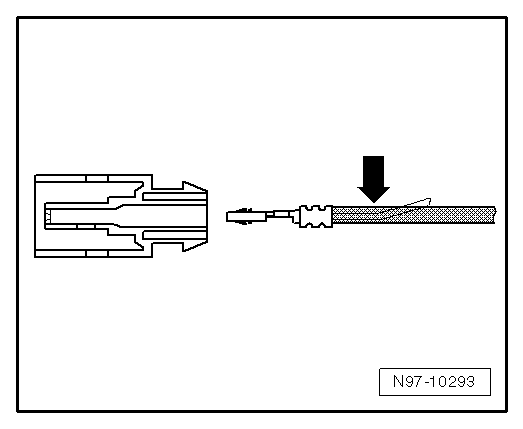

Assembly tools serve the purpose of allowing the single wire seals to be slid without damage into terminal housing up to stop, this achieves a complete seal between single wire and terminal housing.

Four assembly tools for single wire seals are components of the Wiring Harness Repair Set -VAS1978B- and its previous versions.

Assembly of single wire seals. Refer to → Chapter "Single Wire Seals, Installing".
