Volkswagen Touran Service Manual: Two-Part MS Matte Clear Coat

Definition:
Two-Part MS Matt Clear Coat -L2K 769 020 A2-
Edition 08/2013
Product Description
Two-part MS matt clear coat is a clear coat from the two-part acrylic system.
Properties:
High elasticity
Matted adjustment
Can be cured with HS and VHS products
Gloss grade adjustments with two-part HS clear coats are possible.
Ideally suited for painting plastic
  Note
The use of Two-Part MS Matt Clear Coat -L2K 769 020 A2- should be limited to small surfaces (passenger vehicle attachments).
Application Instructions
Base Surface
Suitable preliminary coatings:
Water-based base paints

Processing
Mixture ratio:
  3:1 by volume with:
Two-Part HS Hardener -LHA 009 041 A3-
Two-Part HS Hardener, Long -LHA 009 047 A3-
Two-Part HS Hardener, Extra Long -LHA 009 048 A3-
  Two-Part MS Matte Clear Coat
Mixture ratio:
  5:1 by volume with:
Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-
Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
  Note
Using varying HS/VHS hardeners and thinners results in different gloss grades.
  Two-Part MS Matte Clear Coat

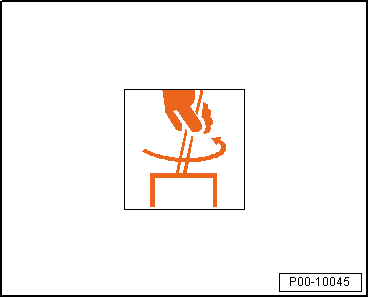

The clear coat should be carefully agitated before removing the material.
Thinner:
Two-Part Thinner -LVE 009 001 A5-
Two-Part Thinner, Long -LVM 009 300 A2-
Two-Part Thinner, Special -LVM 009 200 A2-/-LVM 009 200 A5-
  Two-Part MS Matte Clear Coat
Processing time/pot life:
  Ready to spray in 4 hours at +20 C (68 F).
  Two-Part MS Matte Clear Coat
Application type "coat"
  Two-Part MS Matte Clear Coat
  Processing viscosity at +20 C (68 F) material temperature is the mixing viscosity for "Compliant" and "HVLP".
Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP":
DIN 4 mm: 14 to 16 seconds
ISO 4 mm: 28 to 33 seconds.
  Two-Part MS Matte Clear Coat
Add 25 % HS hardener (3:1) and 30 % VHS hardener (5:1) at +20 C (68 F) material temperature
  Use a measuring stick to mix when pouring in the thinner.
  Two-Part MS Matte Clear Coat
  Set spray nozzle (see manufacturer's information): "Compliant" and "HVLP" to 1.3 to 1.4 mm.
  Set spray pressure (see manufacturer's information): "Compliant" to 2.0 to 2.5 bar.
  Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.
  Apply two coats.
  Two-Part MS Matte Clear Coat
  Apply one complete preliminary spray application, allow to ventilate for 15 to 20 minutes and then finish painting.
  The prescribed layer thickness is 50 to 60 mm.
  Note
Using varying application types results in different gloss grades.
  Two-Part MS Matte Clear Coat
Drying
Air dry at +20 C (68 F) room temperature:
Dust dry after 2 to 2.5 hours
Ready for assembly after 5 to 6 hours
Dry overnight
  Two-Part MS Matte Clear Coat
Final drying time with forced drying is a minimum of 15 to 20 minutes
  Two-Part MS Matte Clear Coat
Forced dry at +60 C (68 F) object temperature for 40 to 45 minutes
  Two-Part MS Matte Clear Coat
Personal Protective Equipment:
Note the safety data sheets
Wear the personal protective equipment during application
Characteristics
  Two-Part MS Matte Clear Coat
Flashpoint: above +23 C (68 F)
VOC value: 2004/42/IIB(e)(840)580 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC value of this product in ready-to-use form is a maximum of 580 g/L.


Storage
The guaranteed shelf life of Two-Part MS Matt Clear Coat -L2K 769 020 A2- is 24 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 C (68 F).
