Volkswagen Touran Service Manual: Valve, Removing and Installing, Rubber Valve

Make sure wheel rim is clean.

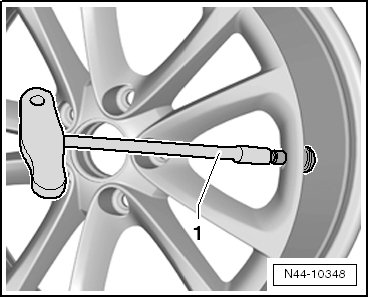

  Using the Valve Fitting Tool Valve Fitting Tool -VAS6459--1-, insert a new tire valve.
  Remove the valve insert.
  Inflate tire to approximately 3 to 4 bar (43.5 to 58 psi), tire bead must slip audibly over rim hump when doing this.
  Install the valve insert.
  Check the tire pressure for specified pressure.
  Balance the tire.
