The following hose connection types are used for connecting hoses to pumps and spray nozzles or as separating points

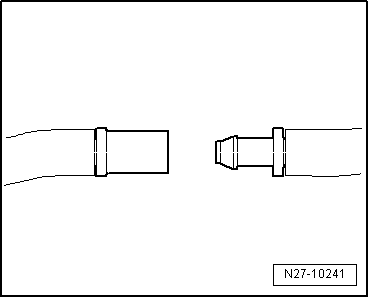

  To loosen the connection, pulling both halves of the coupling apart.
  To secure the connection, push both halves of coupling together until felt and heard to engage.
  Windshield and Rear Window Washer System

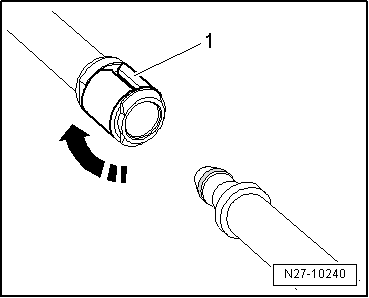

  To loosen the connection, turn the securing clip -1- 90 -arrow- and then pull the hose connection off.
  To secure the connection, attach the hose connection and turn the securing clip -1--arrow- until it engages.
  Windshield and Rear Window Washer System

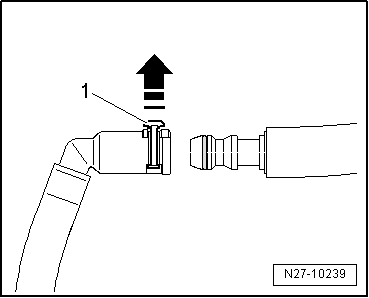

  To loosen the connection, lift the securing clip -1- approximately 1 mm -arrow- and then remove the hose connection.
  To secure the connection, attach the hose connection and press in the securing clip -1- until it engages.
  To secure the connection, attach the hose connection and press in the securing clip -1- until it engages.
  Windshield and Rear Window Washer System

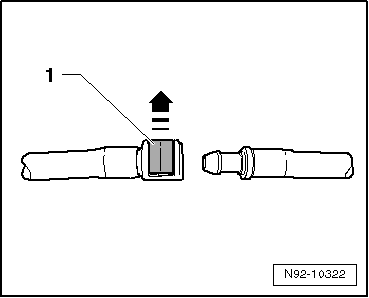

  To loosen the connection, pull the securing clip upward -1--arrow- and remove the hose connection.
  To secure the connection, attach the hose connection and press in the securing clip -1- until it engages.
  Windshield and Rear Window Washer System
    Washer Fluid Line Hose Connections
    ...
