Volkswagen Touran Service Manual / Electrical System / Windshield Wiper/ Washer System / Washer Fluid Line Hose Connections / Headlamp Washer System

The following hose connection types are used for connecting hoses to pumps and spray nozzles or as separating points

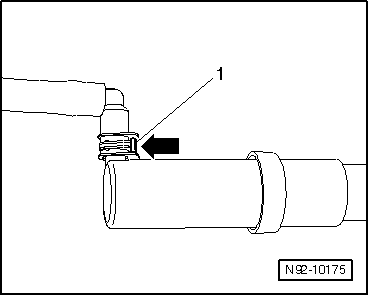

Disconnect by depressing clip -1--arrow- and then separating coupling from jet.

Reconnect by keeping clip -arrow- depressed while pushing coupling onto jet until it engages. Check securing clip for secure locking by attempting to pull it off without depressing clip.

Windshield and Rear Window Washer System

The following hose connection types are used for connecting hoses to pumps and spray nozzles or as separating points ...

Hoses, Repairing

General Information A new repair concept has been developed for repairing washer system hoses. Various individual hose connectors, adapters, Ethylene Propylene Diene ...
