Volkswagen Touran Service Manual: A/C Compressor Regulator Valve -N280

Volkswagen Touran Service Manual / Heating, Ventilation and Air Conditioning / Refrigerant Circuit General Information / Switches and Sensors on Refrigerant Circuit and Connections / A/C Compressor Regulator Valve -N280

Note

For switching pressures, removing and installing switches and switch arrangement and version, see vehicle-specific refrigerant circuit.

Refer to → Rep. Gr.87.

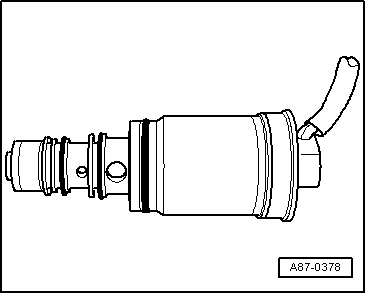

The regulator valve is implemented into the compressor. It is activated by the A/C Display Control Head -E87- or Climatronic Control Module -J255-. Pressure on the low pressure side is influenced via the regulator valve and thus regulates the temperature in the evaporator.

Note

The A/C Compressor Regulator Valve -N280- is a component of the A/C compressor and cannot be replaced separately.
