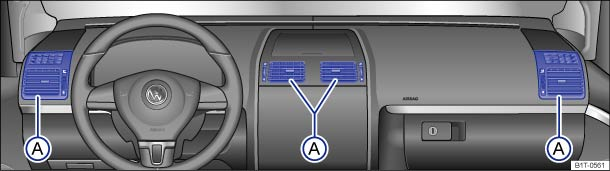

Fig. 162 In the dash panel: vents

Fig. 163 In the rear section of the centre console: vents for rear ventilation

First read and observe the introductory information and safety warnings

Vents

To ensure that the vehicle interior is sufficiently heated, ventilated and cooled, you should never fully close the vents , .

Turn the thumb wheel in the required direction to open and close the vents.

Adjust the direction of the air flow by moving the grille.

Further vents can be found in the footwell and in the rear area of the vehicle interior.

NOTICE

Do not place any food, medicine or any other heat-sensitive items in front of the air vents. Heat-sensitive food, medicine and other items could be either damaged or rendered useless.

The air from the outlets flows through the passenger compartment and out of the vehicle through the slots below the rear window. The slots must not be covered by items of clothing or other items.
