Volkswagen Touran Owners Manual: Folding the seats on the second row of seats forwards and backwards

Volkswagen Touran Owners Manual / Before the journey / Transport / Luggage compartment / Folding the seats on the second row of seats forwards and backwards

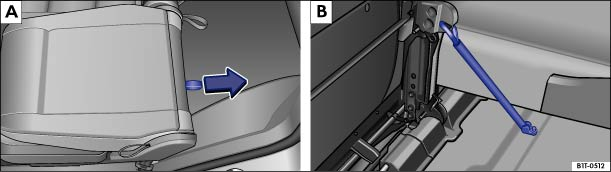

Fig. 90 A: Folding seat forward B: Supporting seat with the securing rod

Fig. 91 Removing the securing rod from the seat when it is folded forwards

First read and observe the introductory information and safety warnings

Folding seat forward

Function Action
A Folding the seat forwards fully First push the head restraint as far down as it will go   .
Move the seat as far back as it will go   .
Pull the loop on the side of the seat and fold the backrest forwards.
OR: Pull the loop on the back of the seat in the direction of the arrow   and fold the backrest forwards.
Pull the loop on the back of the seat in the direction of the arrow. Fold the seat forwards.
B Supporting the folded seat. Always push the rod firmly into the seat anchoring until the securing rod engages

Folding seat back

Function Action
  Folding the seat back. Pull the lever in the direction of the arrow.
OR: Pull up the loop on the seat   A to release the catch on the securing rod.
Take the securing rod out of the seat and place it in the floor anchoring.
Fold the complete seat back until it engages.
Pull the loop on the side of the seat and fold the backrest back.
OR: Pull the loop on the back of the seat in the direction of the arrow and fold the backrest back.
Adjusting the head restraint   .

WARNING

Injuries could be caused if the seats are folded backwards carelessly.
  • Always keep hands, fingers, feet or other body parts away from the seat area when folding the seat backwards.

WARNING

A seat that has not been secured properly could become loose in an accident.
  • After installing the seat, pull it upwards to check that the catches are securely engaged.

The seats in the second row of seats can only be folded forwards if the seat is first moved back fully.
