Volkswagen Touran Service Manual: One-Part Wash Primer

Definition:
One-Part Wash Primer -LLS MAX 106 M2-, light gray
One-Part Wash Primer -LLS MAX 107 M2-, dark gray
Edition 03/2013
Product Description
The One-Part Wash Primer -LLS MAX 106/107 M2- are zinc chromate-free single-compound products from the PVB system.
It can be used as a wash primer for all conventional metallic base surfaces.
For work safety, wear appropriate, personal protective equipment.
Properties:
Good corrosion protection properties
Easy handling (one-part material)
Available in two shades of gray
Application Instructions
Base Surface
Suitable base surfaces:
Bare sheet steel, sanded
Cleaned and sanded, galvanized/electrolytically zinced sheet steel or soft aluminum
Thoroughly sanded old primer or factory primer (excluding thermoplastic coating)
Surfaces prepared with two-part polyester products and then sanded very fine.
  Note
Because of the wide variety of alloys and manufacturing processes for metals, the base surface must first be tested to ensure that the pre-treatment provides sufficient adhesion.

Pre-treatment of base surfaces:
  Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.
  One-Part Wash Primer
  Sand the factory- or old paint.
  Thoroughly remove any potential rust spots and sand any transitions to old paint.
  One-Part Wash Primer
  Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.
  One-Part Wash Primer
Processing
Application:

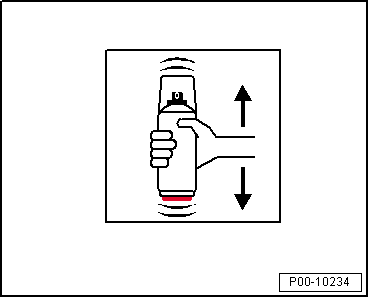

  Shake the can thoroughly for two minutes.
  One-Part Wash Primer

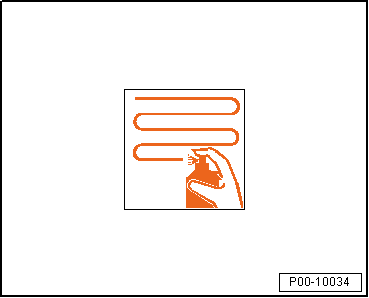

Application type "coat"
  Apply one to three spray applications with a 5 to 10 minute intermediate ventilation time.
When using as wash primer:
  Apply one to two spray applications with a 5 to 10 minute intermediate ventilation time.
Spraying distance:
  Maintain a distance of 20 to 25 cm.
  The recommended dry layer thickness is between 10 and 20 mm.
Insulating small, sanded-through areas (no larger than 5.0 cm):
  Note
Water-based base paints or two-part HS top coats may only be applied using wet-in-wet and intermediate sanding processes on the one-part wash primer if the sanded-through area is not larger than 5.0 cm. Application occurs in one to three spray applications with a 10-40 μm dry layer thickness.
If the spraying procedure is interrupted, make sure that the valve above the spray head is empty to prevent any nozzle blockage.
  One-Part Wash Primer
Drying
Dry at +20 C (68 F) room temperature for 10 to 20 minutes. The material can be sanded after 45 to 60 minutes.
Can be painted over with:
Two-part acrylic filler after 10 to 15 minutes.
Two-part HS top coat after 10 to 15 minutes (only for small, sanded-through areas).
Water-based base paint after 20 to 30 minutes (only for small, sanded-through areas).
  One-Part Wash Primer
Reworking
1. -  Using as a wash primer to be able to paint over with two-part HS filler.
2. -  Using as a wash primer to insulate small, sanded-through areas:
  One-Part Wash Primer
  Wet-sand with P 800-1000 grit sandpaper
Can be painted over with:
Two-part HS top coat (for small sanded-through areas only)
Water-based base paint and two-part HS clear coat (for small sanded-through areas only)
  Note
Do not rework with polyester products and epoxy products.
Do not apply to thermoplastic coatings.
Do not dry-sand.
  Caution
For work safety, wear appropriate, personal protective equipment.
Note the safety data sheets as well as the warnings on the label of the spray nozzle.
Shake briefly again before every subsequent spray application.
Dispose of the empty spray cans as recyclable material.
Characteristics
  One-Part Wash Primer
VOC value: 2004/42/IIB(e)(840)690 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 690 g/L.


Storage
The guaranteed shelf life of 60 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 C (68 F).
  One-Part Wash Primer
