Volkswagen Touran Service Manual: Round Connector Systems

Volkswagen Touran Service Manual / Electrical System / Wiring / Wiring Harness and Connector Repairs / Round Connector Systems

Note

If necessary, housing securing mechanisms (secondary locks) must be released or removed using specified tool before releasing the contacts. Refer to → Chapter "Secondary Lock".

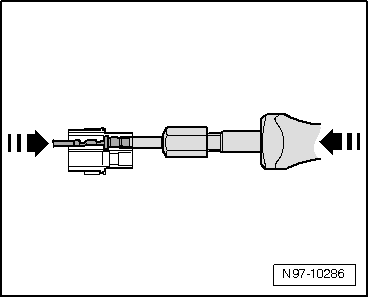

Guide the release tool which fits the contact housing into release channel on contact housing.

Grasp contact at wire and push it gently into contact housing -arrow-.

Note

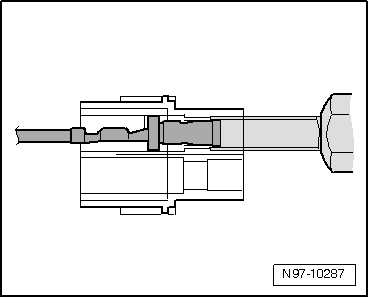

By pushing the contact in the direction of the contact housing, the contact retaining tabs are lifted off the housing shoulder and can be released using the release tool.

At the same time, push release tool in direction of contact housing -arrow- and pull the released contact out of contact housing.

After removing the contact, release tool can be pulled out of the contact housing again.

Primary Lock

The primary lock is the locking mechanism of an individual crimp contact in the contact housing. If necessary, housing securing mechanisms (secondary ...

Flat Connector Systems

Note If necessary, housing securing mechanisms (secondary locks) must be released or removed using specified tool before releasing the contacts. Refer ...
