Volkswagen Touran Service Manual: Two-Part Fine Filling Paste

Definition:
Two-Part Fine Filling Paste -LSP 784 002 A2-
Edition 06/2011
Product Description
The two-part fine filling paste is a very fine thixotropic polyester filling paste.
This filling paste is suitable for small repairs.
Application Instructions
Properties
Fine and non-porous
Removes easily
Sands easily
High elasticity for touching up synthetic surfaces
Base Surface
Suitable base surfaces:
Steel
Aluminum
Glass fiber reinforced plastics
Old paint and factory paint
Hardened two-part filler/two-part primers
Plastic parts glaze-primed with Two-Part Plastic Adhesive Filler -LKF 696 009 A2-/-LKF 696 040 A2- or Adhesion Promoter -ALO 822 000 10-
Primed surfaces with two-part polyester filling paste.
  Caution
This filling paste may not be applied to PVB (acid-hardening) adhesive primers or one-part primers (for example, synthetic resin).
Application on thermoplastic or elastic coatings is also not possible. In these cases, only apply filler paste to bare steel.

Pre-treatment of base surfaces:
  Remove any grease and sand the surface.
  Bare metallic base surfaces are to be insulated with Two-Part Wash Primer -LHV 043 000 A2- and then filled with Two-Part HS Performance Filler. Sand the filler after drying.
  With UP-GF underbodies, clean components of any residual agents and sand the surface.
  Two-Part Fine Filling Paste

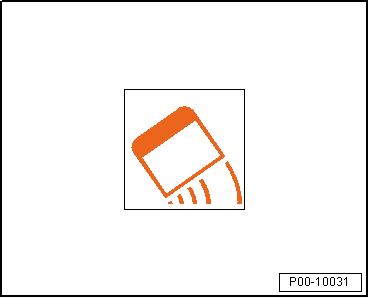

  Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.
  Two-Part Fine Filling Paste
Processing
Application type:

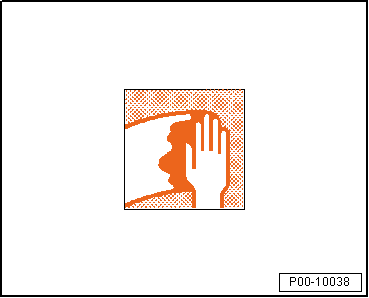

  Apply filling paste.
  Two-Part Fine Filling Paste

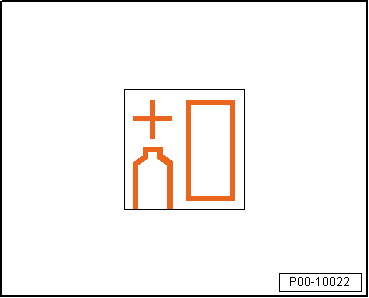

Mixture ratio:
  Add 2 to 3 % by weight Two-Part Hardener -LVM 018 000 A1/A2- or, especially when dealing with high temperatures, Two-Part Hardener, Long -LVM 018 100 A2-.
  Note
Avoid using excessive hardener paste, to prevent it from bleeding through, especially on daylight colors and light metallic colors.

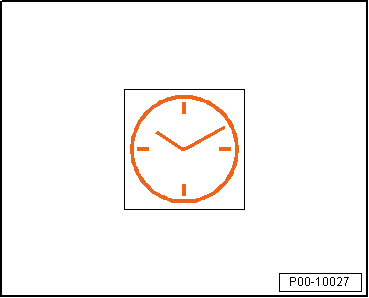

Curing Time:
  At +20 C (68 F) room temperature for about three to five minutes.
Reaction Temperature:
  Minimum +5 C (41 F)
  Two-Part Fine Filling Paste
Drying
Air Drying:
  At +20 C (68 F) room temperature for about 20 to 30 minutes.
  Two-Part Fine Filling Paste

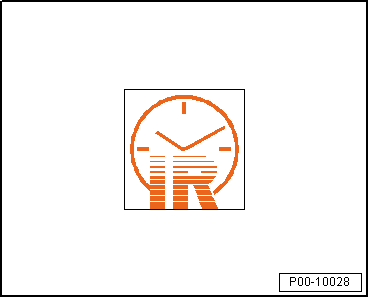

Infrared drying:
Short-wave heaters for three minutes (at 50 % power)
Medium-wave heaters for five minutes.
  P00-10028
Sanding compatibility
In connection with the aforementioned drying time:

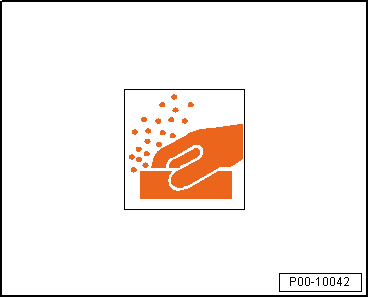

  Dry-sand the pre-sanding with P180-240 grit sandpaper
  Dry-sand the final sanding with P240-320 grit sandpaper
  Two-Part Fine Filling Paste

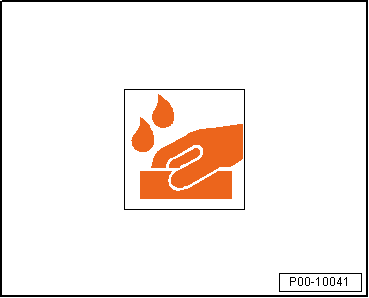

  While wet, sand the pre-sanding with P240-320 sandpaper
  While wet, sand the final sanding with P600-800 sandpaper
  Note
When wet-sanding, make sure to wipe and dry off the surface.
Temperature resistance up to +80 C (176 F).
  Two-Part Fine Filling Paste
Reworking
Recommended structure:
One-Part Wash Primer -LVM 044 007 A2-/-LVM 044 171 A2-
Two-Part Wash Primer -LHV 043 000 A2- and Two-Part HS Vario Filler
Two-Part Plastic Adhesive Filler -LKF 696 009 A2-/-LKF 696 040 A2-
Unelasticized Adhesion Promoter -ALO 822 000 10- and Two-Part HS Filler (for plastic parts)
  Then paint over with the top coat.
  Two-Part Fine Filling Paste

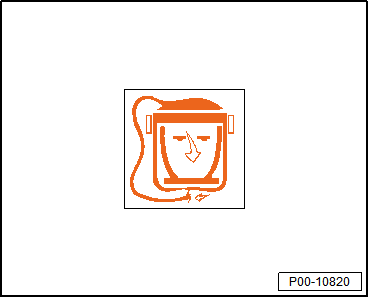

Personal Protective Equipment:
Note the safety data sheets
Wear the personal protective equipment during application
Characteristics
  Two-Part Fine Filling Paste
Delivery Viscosity pasty
Flashpoint: Filling paste over 23 C (73.4 F)
VOC value: 2004/42/IIB(b)(250)170 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 250 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 170 g/L.

Storage
The guaranteed shelf life is 12 months from the production date. Use no later than the date indicated on the label and store in original container at +20 C (68 F).

Storage Conditions
  Storage Temperature +20 C (68 F) (temperature should not exceed +30 C (86 F)).
