These disc wheels are equipped with replaceable decoration elements. Note the following when installing.

Clean the thread in the disc wheel before screwing in the new bolts.

Use new bolts only!

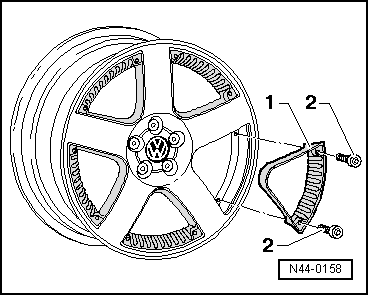

1 -	Decoration element

2 -	Hex socket bolts

Tightening specification for self-locking hex socket bolts: 5 Nm
