Volkswagen Touran Service Manual: Wiring Harness Repair Set -VAS1978-

Volkswagen Touran Service Manual / Electrical System / Wiring / Wiring Harness and Connector Repairs / Wiring Harness Repair Set -VAS1978-

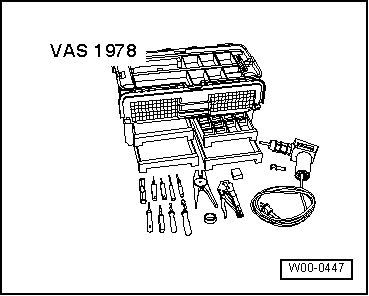

The Wiring Harness Repair Set -VAS1978- makes optimal repair quality possible in the realm of vehicle electronics. Using the tools, repairs affecting harness connectors and for breaks in wiring can be performed. For this purpose, complete repair wires with terminals already crimped on are used and can be connected to vehicle-specific wiring harness by the use of crimp connections. A pair of crimping pliers with three different crimp slots and a hot air gun for shrinking the crimp connections provide trouble-free electrical connection.

Note

Additional information:

Refer to Wiring Harness Repair Set -VAS1978- Operating Instructions.
