Volkswagen Touran Service Manual: Wiring Harness Repair Set - Wire Strippers -VAS1978/3

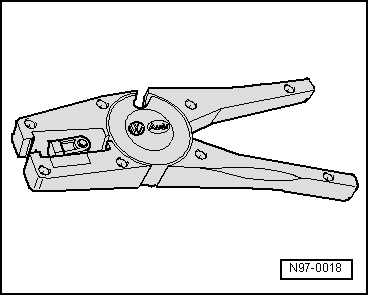

| The Wiring Harness Repair Set - Wire Strippers -VAS1978/3-
is used for professional stripping and cutting of wires. |
| The Wiring Harness Repair Set - Wire Strippers -VAS1978/3-
is a component of the Wiring Harness Repair Set -VAS1978B- and
its previous versions. |
| Wire stripper has an adjustable stop in its pliers-jaws
which can be set to the desired length of wire insulation to be
removed. |
| |
Set the slideable stop in pliers-jaws to the desired length
dimension to be stripped. |
|
|
|
| |
Insert wire end from front up to stop into jaws of pliers
and squeeze the pliers completely. |
| |
Open pliers again and remove the stripped wire end. |
|
|
|
| |
If necessary, cut wires using side-cutter function on the
top of the wire stripper. |
|
|
|
Assembly tools serve the purpose of allowing the single wire
seals to be slid without damage into terminal housing up to
stop, this achieves a complete seal between s ...
Caution
When heat-shrinking crimp connections, be careful
not to damage any other wiring, plastic parts or
insulat ...
