Volkswagen Touran Service Manual: Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A

Volkswagen Touran Service Manual / Electrical System / Wiring / Wiring Harness and Connector Repairs / Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A

Caution

When heat-shrinking crimp connections, be careful not to damage any other wiring, plastic parts or insulating material with the hot nozzle of the hot air gun.

Always observe operating instructions of heat gun.

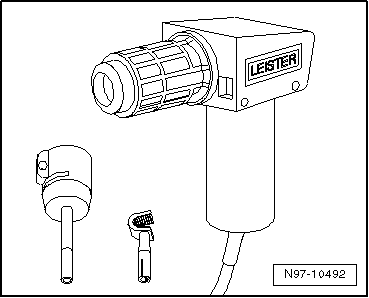

The Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A- is used together with the Wiring Harness Repair - Blower - Shrink Element -VAS1978/15A- to heat-shrink the crimp connectors. After crimping, crimp connections must be heat-shrunk using hot air gun to prevent moisture penetration.

The Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A- is a component of the Wiring Harness Repair Set -VAS1978B- and its previous versions.

Crimp connectors, heat-shrinking using the Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A-. Refer to or → Chapter "Wire Break with Dual Repair Point".
